Description

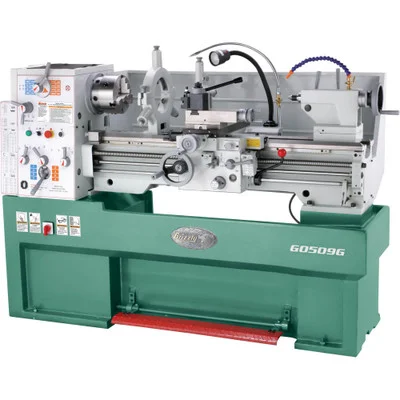

Grizzly Industrial 16″ x 40″ 3-Phase Gunsmithing Metal Lathe (G0509G) is designed for precision and versatility, making it ideal for gunsmithing and metalworking applications. Equipped with a powerful 4 HP/3 HP motor, 2-speed transmission, and a 16 RPM to 1800 RPM range.
The precision-ground V-way bed and camlock spindle offer reliable accuracy, while features like left-hand threading and a 4-3/4″ tailstock quill travel add to its functionality. With its comprehensive standard equipment, including steady and follow rests, a coolant system, and a full-length splash guard.
- Specifications and Dimensions
- Main motor: 4 HP/3 HP, 220V, 3-phase, 2-speed, 17A/8.5A
- Coolant motor: 1/8 HP, 0.45A
- Swing over bed: 16″
- Distance between centers: 40″
- Swing over saddle: 14-3/4″
- Swing over cross slide: 10″
- Spindle nose taper: MT#6 with MT#4 adapter
- Spindle nose: D1-6 camlock
- Spindle speeds: 16, 45–1800 RPM
- Tailstock taper: MT#4
- Tailstock quill travel: 4-3/4″
- Cross slide travel: 8-1/2″
- Compound travel: 5-1/2″
- Range of threads (inches): 45, 2–72 TPI
- Range of threads (metric): 39, 0.2–14 mm
- Diametrical pitch range: 21, 8–44 DP
- Modular pitch range: 18, 0.3–3.5 MP
- Overall dimensions: 76-3/8″ W x 33-7/16″ D x 51-3/16″ H
- Approximate shipping weight: 3300 lbs
- Key Features and Benefits
- Left-hand threading capability for increased versatility
- Camlock spindle design ensures secure and accurate work holding
- Precision-ground and hardened V-way bed for durability and accuracy
- Two-speed motor with a wide spindle speed range (16–1800 RPM)
- Comprehensive standard equipment for a ready-to-use setup
- Tailstock quill with 4-3/4″ travel for precise adjustments
- Emergency stop and jog button for safety and control
- Includes
- 8″ 3-Jaw universal chuck
- 12″ 4-Jaw independent chuck
- 14″ Faceplate
- Steady rest
- Follow rest
- LED lighting
- Coolant system
- Full-length splash guard
- #4 to #6 Morse taper sleeve
