Description

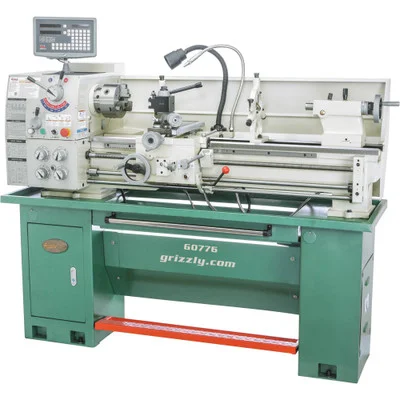

Grizzly Industrial 13″ x 40″ Gunsmithing Lathe w/ DRO (G0776) delivers the precision and reliability needed for advanced gunsmithing and metalworking. Equipped with a 2 HP motor and a two-axis digital readout, this lathe ensures accurate and efficient machining.
This lathe features a quick-change gearbox, a foot brake for safety, and a hardened cast-iron bed for durability. The versatile design, including a 1.57″ spindle bore and a maximum distance of 40″ between centers, makes it ideal for creating custom firearm components.
- Specifications and Dimensions
- Motor: 2 HP, 220V, single-phase, 8.5A
- Swing over bed: 13-11/16″
- Swing over gap: 18-1/2″
- Swing over cross slide: 7-11/16″
- Distance between centers: 40″
- Bed width: 7-1/16″
- Spindle bore: 1.57″ (40mm)
- Spindle taper: MT#5
- Spindle speed: 8, 70–2000 RPM
- Spindle nose: D1-4
- Cross slide travel: 5-7/8″
- Compound travel: 3-1/4″
- Tailstock taper: MT#3
- Overall dimensions: 74-1/2″ W x 31″ D x 58″ H
- Approximate shipping weight: 1370 lbs.
- Key Features and Benefits
- 2-Axis digital readout for enhanced accuracy
- Quick-change gearbox for versatile threading
- Foot brake with motor shut-off for safety
- Built-in flood coolant system
- Flame-hardened headstock gears for durability
- Full-length splash guard to keep the workspace clean
- Hardened cast-iron bed ensures stability and precision
- Includes
- 6″ self-centering 3-jaw chuck installed
- 8″ 4-jaw chuck with independent jaws
- 10″ faceplate
- Steady rest and follow rest
- Toolbox with service tools
- MT#3 HSS dead center and MT#3 carbide-tipped dead center
