Description

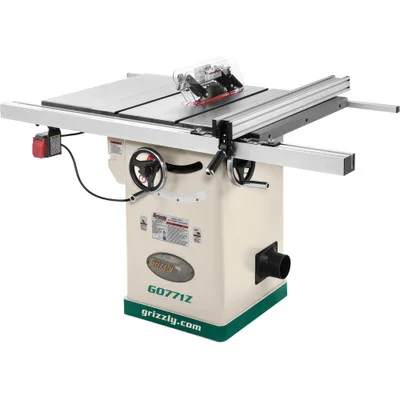

Grizzly Industrial 10″ 2 HP 120V Hybrid Table Saw w/ T-Shaped Fence (G0771Z) combines the power and precision of a cabinet-style table saw with the compact versatility of a contractor saw. Its 2 HP motor and enclosed cabinet ensure efficient operation while maintaining a smaller footprint suitable for small workshops.
This hybrid table saw features a micro-adjustable, easy-glide fence system, a quick-release blade guard, and cast-iron trunnions for stability and durability. The precision-ground cast-iron table extends over 40″ with extension wings, providing ample workspace for various cutting needs, from rip cuts to dadoes.
- Specifications and Dimensions
- Motor: 2 HP, 120V/240V (prewired for 120V), single-phase, 15A/7.5A
- Rip capacity: 30″ right, 15″ left of blade
- Max. depth of cut @ 90°: 3-1/4″
- Max. depth of cut @ 45°: 2-1/4″
- Overall table size: 40-1/2″ W x 27″ D
- Distance from front of table to center of blade: 15-1/2″
- Floor-to-table height: 35-3/8″
- Arbor diameter: 5/8″
- Arbor speed: 3450 RPM
- Max. width of dado: 13/16″
- Dust port size: 4″
- Footprint: 19-1/2″ x 21″
- Overall dimensions: 64″ W x 40-1/4″ D x 36″ H
- Approximate shipping weight: 324 lbs.
- Key Features and Benefits
- Durable cast-iron tables and trunnions for long-lasting performance
- Compact hybrid design with the power of a cabinet saw
- Micro-adjustable easy-glide fence system with narrow rip attachment
- Quick-release blade guard and riving knife system for safe operation
- Precision-ground cast-iron table with extension wings for added workspace
- Enclosed cabinet design for improved dust collection
