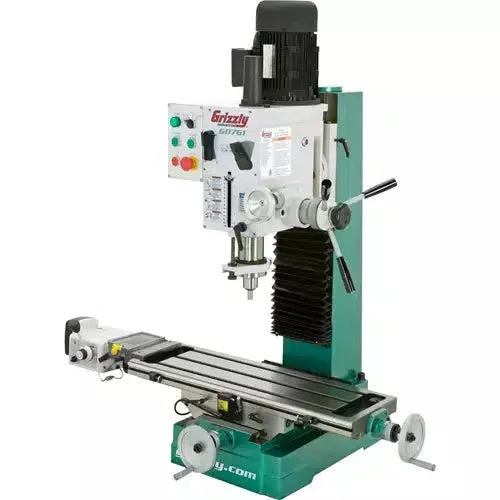

G0761 10″ x 32″ 2 HP HD Benchtop Mill/Drill with Power Feed and Tapping

This Heavy-Duty Mill/Drill with Power Feed has it all!

Looking for a Benchtop Mill/Drill with tapping capabilities that can rival the accuracy and rigidity of a knee mill? Then take a good look at this machine.

With the G0761, you’ll be making perfect cuts all day long thanks to the dovetail column, table ways, and high-precision P5 spindle bearings.

Changing spindle speeds is fast and simple with the gearbox levers and getting the perfect table feed is as easy as dialing-in the variable-speed power feed on the 9-1/2″ x 32-1/2″ table.

The head tilt can be locked in anywhere between 45° left to 45° right while the R8 spindle rotates the cutter.

Like all of the Grizzly mills, the G0761 comes with a 1-year limited warranty. (Consumables are not covered by the warranty.)

The G0761 manual was written by our U.S.-based Documentation Department is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your mill.

The Grizzly Technical Support team is also U.S.-based. Parts and accessories for the mill may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Motor: 2 HP, 220V, single-phase, 8.6A
• Swing: 20-1/4″
• Max. distance spindle-to-table: 18-1/8″
• Table size: 9-1/2″ x 31-1/2″
• Table travel (X-, Y-Axis): 22″, 7-1/2″
• Head travel (Z-Axis): 13-3/4″
• Spindle travel: 4-3/4″
• Spindle speeds: 6, 90–1970 RPM
• Spindle taper: R-8
• Head tilt: 45° left & right
• Table T-slots: 1/2″ wide, 3-1/8″ OC
• Overall size: 49-5/8″ W x 57″ H x 30-3/4″ D
• Base footprint: 17-3/4″ W x 21-5/8″ D
• Approximate shipping weight: 714 lbs.

FEATURES:

• Reversible spindle & tapping controls
• Longitudinal variable-speed power feed
• High-precision P5 spindle bearings
• Table is coolant-system ready
• Dovetail ways, each with adjustable gibs & dual locks for accuracy
• Coarse/fine spindle downfeed with stops
• Drill chuck 1-13mm with B16 taper, tool box & oil bottle included
