Description
Features

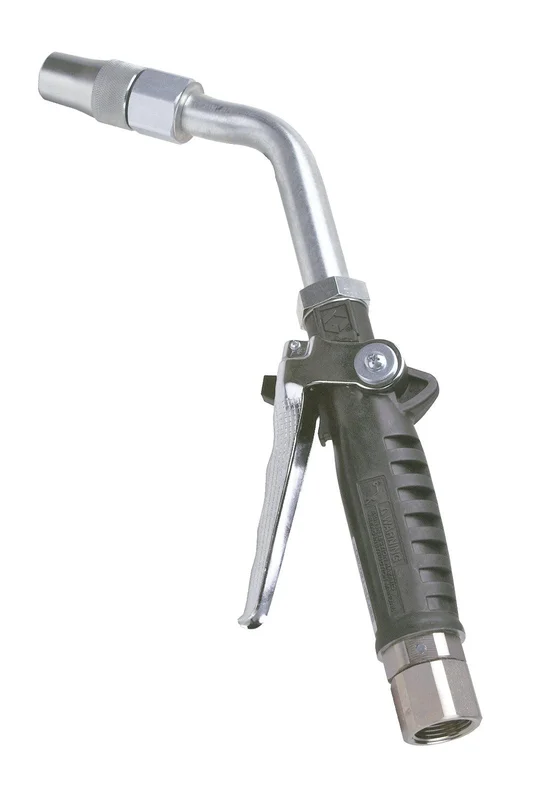

For standard and heavy-duty applications, both indoor and outdoor, the XDV20 control valves are designed to perform in larger dealerships with longer plumbing runs and greater fluid usage. The control valve is compatible with a wide range of nozzles and fluid extensions and is capable of pumping oil up to 20 gpm (75.7 lpm).
High-flow, non-metered oil dispense for Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining.
- Lock-on/Lock-off trigger allows hands free operation
- Sturdy cast body designed for use in tough environments
- Inlet 3/4 in. NPT with swivel
- Features rigid extension with high flow nozzle
Specifications
UPC Product: 00633955316591 Family Code: FAMVOL Unit of Measure: EA Height: 2.4 IN |6.096 CM Length: 12 IN |30.48 CM Width: 8.4 IN |21.336 CM Volume: .14 FT3 |.004 M3 Chargeable Weight: 3.5 LBS | 1.59 KG
Technical Specifications
| Compatible Material | Oil, Antifreeze |
|---|---|
| Display Type | N/A |
| Extension Type | Rigid |
| Includes | 喷嘴，延长件, Nozzle, Extension, Boquilla, extensión |
| Inlet Size (cm) | 1.905 |
| Inlet Size (in) | 3/4 |
| Inlet Size (mm) | 19.05 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Operating Temperature (°F) | 180 |
| Minimum Operating Temperature (°F) | -40 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Working Pressure (bar) | 103.4 |
| Maximum Working Pressure (kPa) | 10340 |
| Maximum Working Pressure (psi) | 1500 |
| Outlet Size (mm) | 22.225 |
| Outlet Size (in) | 7/8 |
| Outlet Size (cm) | 2.2225 |
| Outlet Thread Gender | Female |
| Outlet Thread Type | Straight Thread O-Ring |
| Trigger Lock | Locking |
| Weight (lb) | 0.4 |
| Weight (kg) | 0.18 |
| Wetted Material | Aluminum, Stainless Steel, CS, Acetal, Nitrile Rubber, TPE |
| Dispense Type | Manual |
| Recommended Environment | Indoor, Outdoor |
| Type | Non-Metered Dispense Valve |
| Valve Type | Non-Metered |
| Model | XDV20 |
