Description
Features

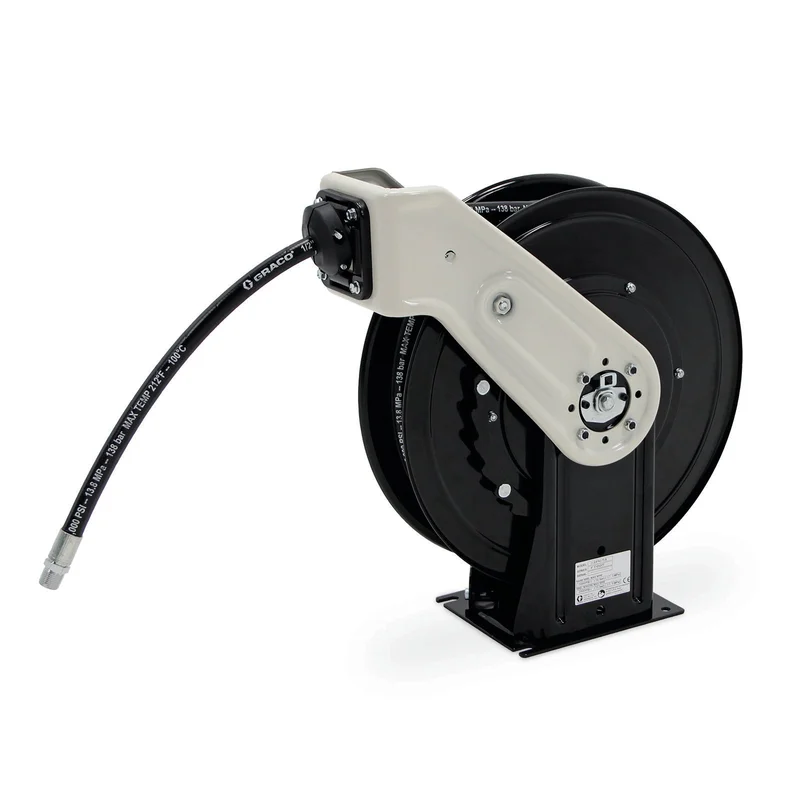

Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
- Spring Adjustment – Increase or decrease spring tension while reel is pressurized with fluid
- Full-Flow Swivel – Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Optional Adjustable Arm – Easily change the arm position for your application, order with arm (XD models) or without (XN models)
- Durable Finish – Baked-on enamel finish protects reel from corrosion
- Large Hose Capacity with Small Profile – Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications
Specifications
UPC Product: 769946210170 Family Code: FAMXD1 Unit of Measure: EA Height: 58.42 CM |23 IN Length: 22.5 IN |57.15 CM Width: 9 IN |22.86 CM Volume: 2.693 FT3 |.076 M3 Chargeable Weight: 64 LBS | 29.03 KG
Technical Specifications
| Color | White |
|---|---|
| Hose Inside Diameter (in) | 1/4 |
| Hose Inside Diameter (mm) | 6.35 |
| Hose Length (ft) | 50 |
| Hose Length (m) | 15 |
| Inlet Size (in) | 3/8 |
| Inlet Size (mm) | 9.525 |
| Inlet Thread Type | NPSM |
| Maximum Temperature (°C) | 93 |
| Maximum Temperature (°F) | 200 |
| Maximum Working Pressure (psi) | 8000 |
| Minimum Temperature (°C) | -40 |
| Minimum Temperature (°F) | -40 |
| Mount Location | Truck Mount, Bench Mount |
| Outlet Size (in) | 1/4 |
| Outlet Size (mm) | 6.35 |
| Overall Height (in) | 22.5 |
| Overall Height (mm) | 572 |
| Overall Length (in) | 18.5 |
| Overall Length (mm) | 473 |
| Overall Width (in) | 7.5 |
| Overall Width (mm) | 191 |
| Series | 10 |
| Wetted Parts | Zinc-Plated Steel, Polyurethane, Steel |
| Application | Grease |
| Type | Spring-Rewind Reel |
| Recommended Environment | Indoor, Outdoor |
| Frame Type | Dual Pedestal |
| Reel Thread Type | NPT |
| Inlet Thread Gender | Male |
| Outlet Thread Gender | Male |
| Recommended Fluid Type | Grease |
| Hose Reel Type | Reel with Hose |
| Model | XDX |
| includes_hose | Yes |
