Description
Features

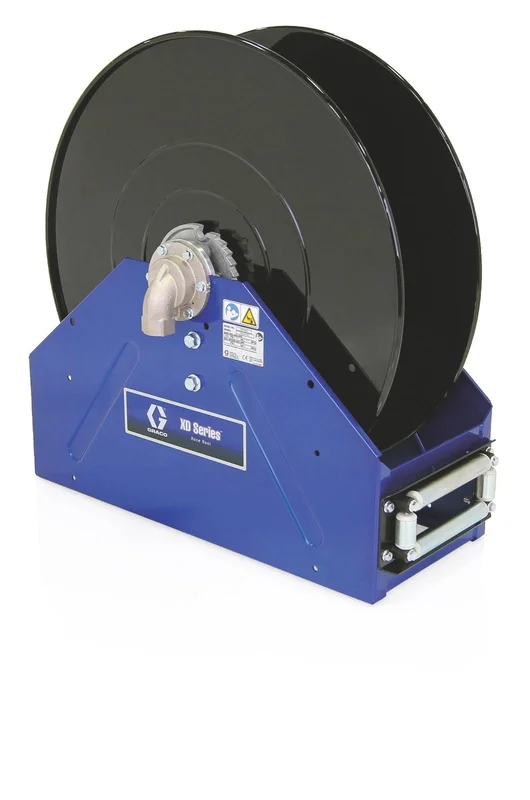

Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
- Extensive Hose Offering – Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
- Full-Flow Swivel – Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Rugged and Durable Body – Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
- Meets Worldwide Needs – Built standard with 90° elbow with NPT threads
Specifications
UPC Product: 00633955383128 Family Code: FAMXD4 Unit of Measure: EA Height: 38.4 IN |97.536 CM Length: 54.864 CM |21.6 IN Width: 36 IN |91.44 CM Volume: 17.28 FT3 |.489 M3 Chargeable Weight: 208 LBS | 94.35 KG
Technical Specifications
| Color | Yellow |
|---|---|
| Dry Weight (lb) | 162 |
| Hose Inside Diameter (in) | 1-1/2 |
| Hose Inside Diameter (mm) | 38.1 |
| Hose Length (ft) | 50 |
| Hose Length (m) | 15 |
| Inlet Size (in) | 1-1/2 |
| Inlet Size (mm) | 38.1 |
| Inlet Thread Type | NPT, Victaulic Groove |
| Maximum Working Pressure (psi) | 600 |
| Outlet Size (in) | 1-1/2 |
| Outlet Size (mm) | 38.1 |
| Overall Height (in) | 30.13 |
| Overall Height (mm) | 765 |
| Overall Length (in) | 29.4 |
| Overall Length (mm) | 747 |
| Overall Width (in) | 18.24 |
| Overall Width (mm) | 463 |
| Series | 50 |
| Application | Diesel Fuel |
| Type | Spring-Rewind Reel |
| Recommended Environment | Indoor, Outdoor |
| Frame Type | Box Frame |
| Bare Reel | 1 |
| Reel Thread Type | NPT |
| Recommended Fluid Type | 柴油燃料, Diesel Fuel, Combustible diésel |
| Hose Reel Type | Bare Reel |
| Model | XD |
| includes_hose | No |
