Description
Specifications
UPC Product: 00633955268128 Family Code: FAMLTX Unit of Measure: EA Height: .75 IN |1.905 CM Length: 2.7 IN |6.858 CM Width: 5.25 IN |13.335 CM Volume: .006 FT3 |0 M3 Chargeable Weight: .08 LBS | .03 KG
Technical Specifications
| Orifice Diameter (in) | 0.019 |
|---|---|
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| Compatible Material | Lacquer to Mastic, Latex Paint |
| For Use With | RAC X 喷嘴座, RAC X ハンドタイト チップガード, RAC X HandTite Tip Guard, Portaboquillas RAC X HandTite, RAC X HandTite 팁 가드 |

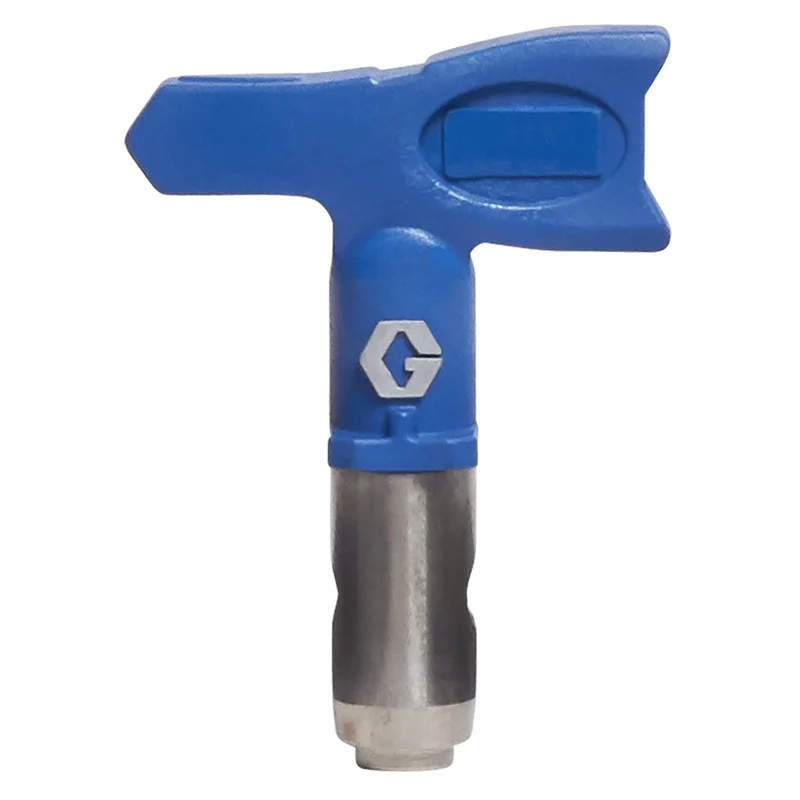

| Type | Spray Tip |
| Maximum Fan Width (in) | 16 |
| Maximum Fan Width (mm) | 457 |
| Spray Pattern | Fan |
| Tip Type | Airless |
| Pattern Size (in) | 16 to 18 |
| Maximum Flow Rate (GPM) | 0.38 |
| Maximum Fan Width (cm) | 40 |
| Maximum Flow Rate (L/min) | 1.44 |
| Minimum Fan Width (in) | 16 |
| Minimum Fan Width (mm) | 406 |
| Pattern Size (mm) | 406.4 to 457.2 |
| Model | RAC X |
| Series | LTX SwitchTip |
