Description

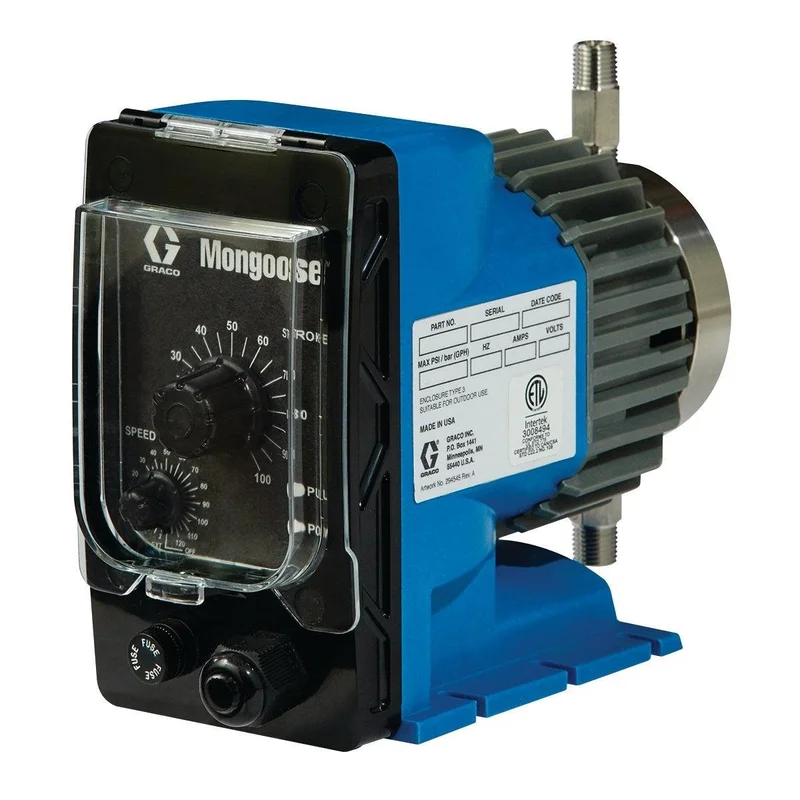

Graco Mongoose chemical metering pumps are suitable for dispensing chemicals for a variety of diverse markets such as oil and natural gas, mining, agriculture, landscaping and lawn maintenance, waste water, and car wash. These pumps can also be used in chemical dosing maintenance applications including cooling towers, boilers, and plating, as well as a multitude of other uses.
Overload Protection
- Self resetting thermal overload prevents over heating
- Over current protection
- Easily replaceable fuse for overcurrent
- No longer a throwaway pump
- Prime/Air Bleed Port
No need to remove fluid section to prime pump
- Quick and easy priming
- Other Features
Manual stroke adjustment
- Splash cover over controls
- NEMA 4x style enclosure
- UL and CSA certified
- Ball/seat check valves
Standards
- CE and ATEX approved.
| Compatible Material | Corrosion Inhibitors, Methanol, Scavengers |
|---|---|
| Fluid Inlet Size (in) | 1/4 |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Section Material | Stainless Steel |
| Material | Stainless Steel |
| Maximum Amperage (A) | 0.5 |
| Maximum Cycle Rate (CPM) | 145 |
| Maximum Flow Rate (GPD) | 17 |
| Maximum Fluid Pressure (MPa) | 1.72 |
| Maximum Fluid Pressure (psi) | 250 |
| Minimum Amperage (A) | 0.1 |
| Model | Mongoose |
| Power Source | Electric |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 120 |
