Description
Features

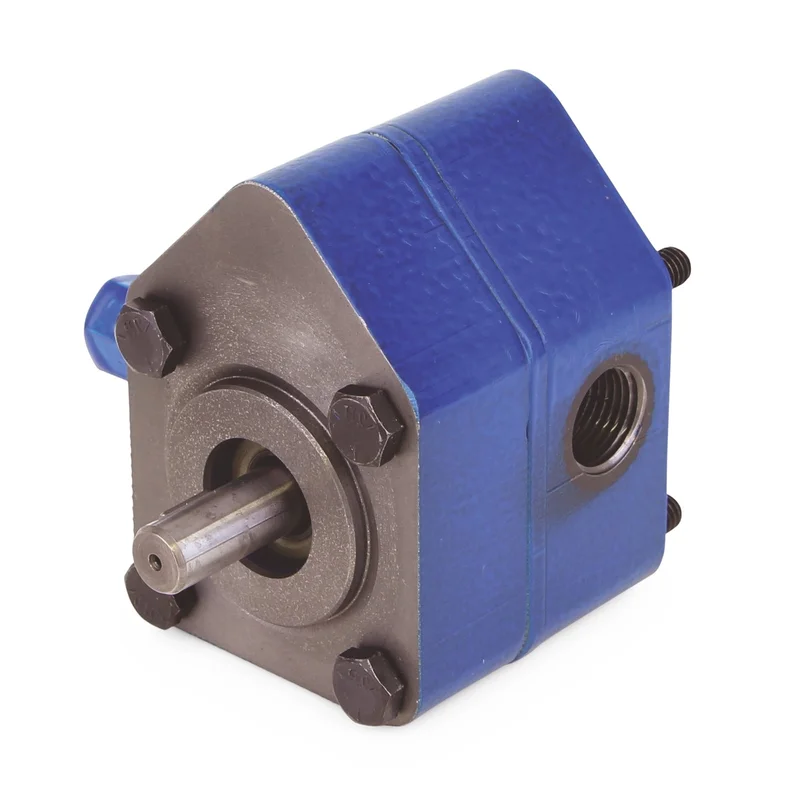

With its solid pump housing, these rugged gear pumps are designed for dependable operation in high demand applications. The gear pump is available with a direct-coupled 1/2 horsepower motor capable of 1,725 rpm’s with output volumes of 245 cubic inches per minute (4015 cc/min).
Direct-drive, smoothly operating pumps ideal for applications requiring continuous delivery of hydraulic or lube oils.
- Ideal for applications requiring continuous oil delivery up to 1,000 lubrication points
- Positive displacement helps assure constant delivery of proper volume.
- Match-ground heat-treated steel gears are enclosed in a rigid, cast-iron housing to assure dependability and long life.
- Standard SAE 4-bolt mounting simplifies installation.
- Adjustable pressure relief valve protects pump against overload conditions.
- Meter-flo pumps are available with a special coupling that allows easy replacement of older Meter-Flo pumps.
- Lubriquip part number 540-800-051
Specifications
UPC Product: 00633955327757 Family Code: FAMLPM Unit of Measure: EA Height: 4.8 IN |12.192 CM Length: 6 IN |15.24 CM Width: 15.24 CM |6 IN Volume: .1 FT3 |.003 M3 Chargeable Weight: 8 LBS | 3.63 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | In-Plant Machinery |
| Compatible Material | Oil |
| Fluid Outlet Size (in) | 0.5 |
| Fluid Outlet Size (mm) | 12.7000 |
| Fluid Outlet Thread Type | NPT |
| Maximum Fluid Output Pressure (psi) | 1500 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Working Pressure (bar) | 103.4 |
| Maximum Working Pressure (kPa) | 10340 |
| Maximum Working Pressure (psi) | 1500 |
| Minimum Operating Temperature (°C) | 10 |
| Minimum Operating Temperature (°F) | 50 |
| Model | Meter-Flo |
| Power Type | Electric |
| Compatible Metering Device | Series Progressive |
| Maximum Flow Rate (ci/min) | 117 |
| Maximum SUS Grade (SUS) | 3000 |
| Minimum SUS Grade (SUS) | 300 |
| Maximum Working Pressure (MPa) | 10.3 |
| maximum_fluid_output_pressure_bar | 103 |
