Description
Features

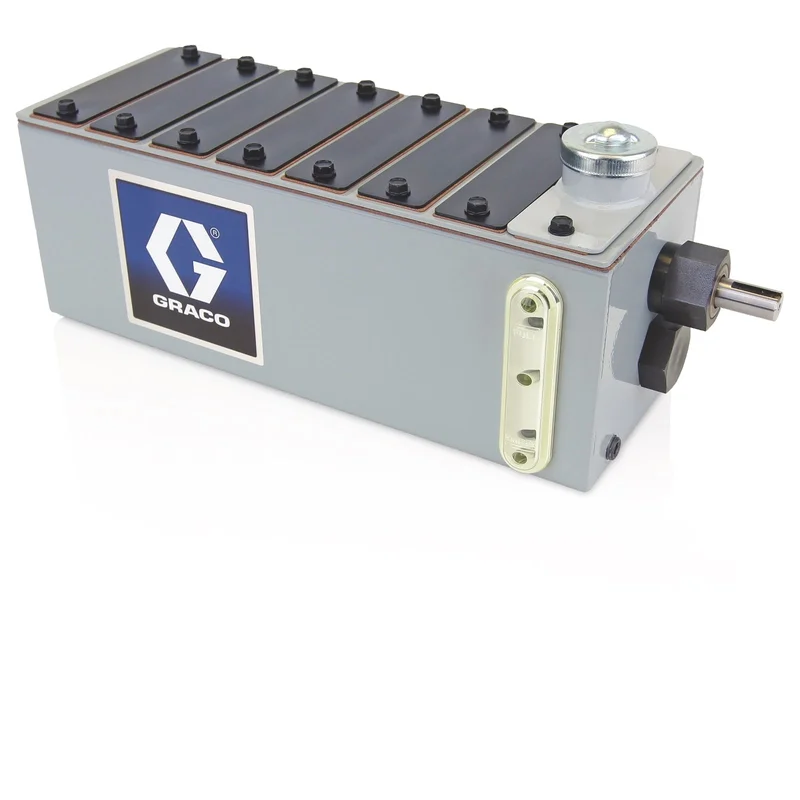

Graco Manzel box lubricators – when quality and delivery matter! Made with Graco quality for long life and durability, the Manzel MB118 is the right size for triplex and quintuplex mud pump applications.
MB118 is the right size for triplex and quintuplex mud pump applications.
- Provide a proven, cost-effective way to assemble customized oil systems that meet specific requirements by using standard modular components
- Increase opportunities to standardize lube system components and reduce lube maintenance and service costs
- 6 pint (2.8 liter) reservoir (6 pump stations max), no pumps installed, 118:1 drive on RH end
- Complete the system with the easy to install GBL 7500 pump units of your choice
Specifications
UPC Product: 00755652280033 Family Code: FAMMAN Unit of Measure: EA Height: 12 IN |30.48 CM Length: 26 IN |66.04 CM Width: 11 IN |27.94 CM Volume: 1.986 FT3 |.056 M3 Chargeable Weight: 30 LBS | 13.61 KG
Technical Specifications
| Type | Box Lubricator |
|---|---|
| Cam Type | Single Lobe |
| Compatible Material | Oil |
| Drive Location | Right Hand Mount |
| Drive Option | Internal Gear Reduction |
| Lubricator Gear Ratio | 118:1 |
| Maximum Drive Speed (RPM) | 1800 |
| Maximum Fluid Viscosity (SUS) | 5000 |
| Maximum Number of Pump Stations | 6 |
| Maximum Number of Strokes (SPM) | 15 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Reservoir Capacity (gal) | 0.75 |
| Maximum Reservoir Capacity (L) | 2.8 |
| Maximum Reservoir Capacity (pt) | 6 |
| Maximum Reservoir Capacity (qt) | 3 |
| Maximum Working Pressure (bar) | 517.1 |
| Maximum Working Pressure (kPa) | 51710 |
| Maximum Working Pressure (psi) | 7500 |
| Minimum Fluid Viscosity (SUS) | 80 |
| Minimum Operating Temperature (°C) | -29 |
| Minimum Operating Temperature (°F) | -20 |
| Number of Pumps | 0 |
| Overall Depth (cm) | 40.3 |
| Overall Depth (in) | 15.88 |
| Overall Depth (mm) | 403.4 |
| Overall Width (cm) | 13.97 |
| Overall Width (in) | 5.5 |
| Overall Width (mm) | 139.7 |
| Reservoir Material | Steel |
| Series | MB |
| Wetted Material | Carbon Steel, Nylon, Fluoroelastomer, Cork, Brass, Aluminum |
| Model | Manzel |
