Description

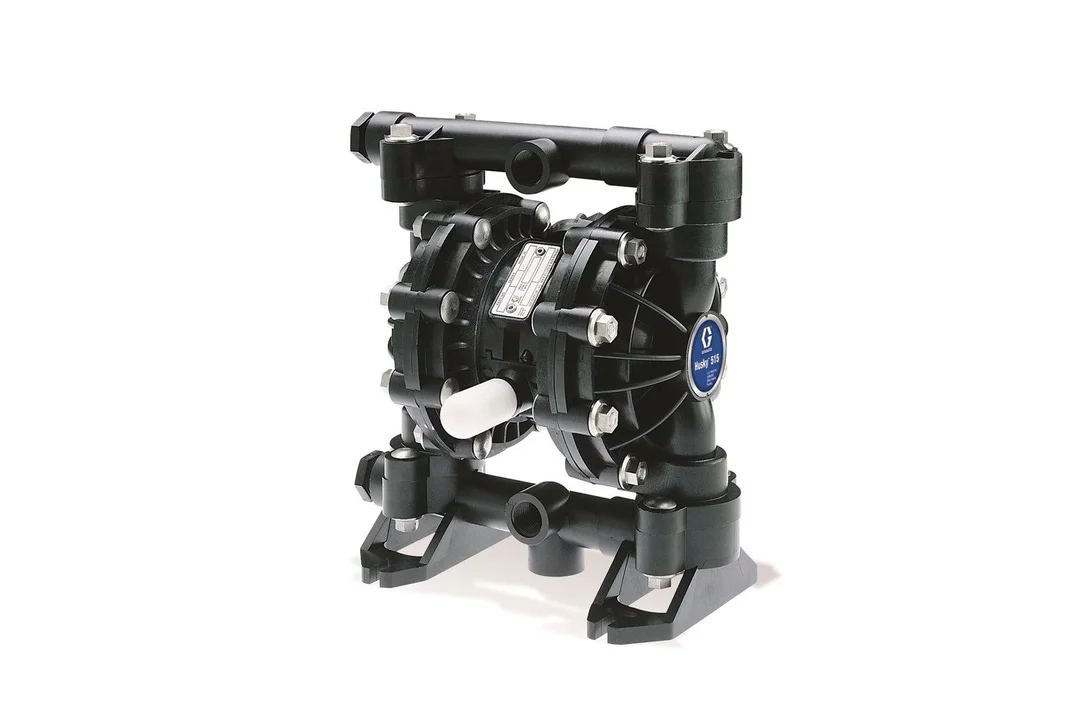

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
Specifications
UPC Product: 00633955010192 Family Code: FAMRSP Unit of Measure: EA Height: 0 IN |0 CM Length: 0 IN |0 CM Width: 0 IN |0 CM Volume: 0 FT3 |0 M3 Chargeable Weight: 21.4 LBS | 9.71 KG
Technical Specifications
| Type | Pneumatic Diaphragm Pump |
|---|---|
| Air Exhaust Port Size (in) | 3/8 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Compatible Material | Antifreeze, Detergent, Resin, Polymer, Motor Oil, Gear Oil, Hydraulic Fluid, Automatic Transmission Fluid, Cutting Oil, Water – Wastewater Treatment, Ink and Colorant |
| Fluid Section Material | Carbon Steel |
| Material | Carbon Steel |
| Maximum Air Consumption (SCFM) | 28 |
| Maximum Air Pressure (bar) | 6.9 |
| Maximum Air Pressure (kPa) | 690 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 400 |
| Maximum Flow Rate (GPM) | 7.5 |
| Maximum Flow Rate (L/min) | 28.4 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (cm) | 0.2383 |
| Maximum Solid Size (in) | 0.09375 |
| Maximum Solid Size (mm) | 2.4 |
| Model | Husky |
| Overall Height (in) | 10.63 |
| Power Source | Air |
| Series | 515 |
| Wetted Material | Carbon Steel |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Working Pressure (psi) | 100 |
| Maximum Working Pressure (MPa) | 0.7 |
| Maximum Working Pressure (kPa) | 70 |
| Maximum Working Pressure (bar) | 7 |
