Description

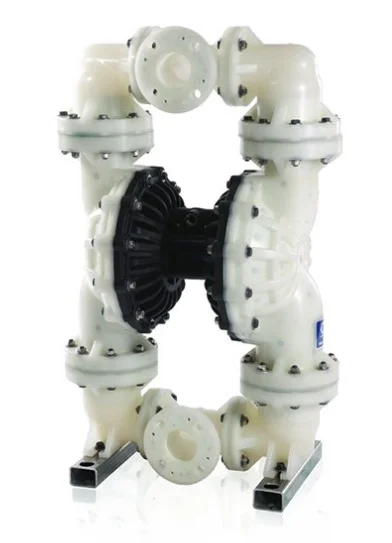

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.
Specifications
UPC Product: 633955651715Family Code: FAMAODUnit of Measure: EAHeight: 52.8 IN |134.112 CMLength: 20.4 IN |51.816 CMWidth: 31.2 IN |79.248 CMVolume: .551 M3 |19.45 FT3Chargeable Weight: 216 LBS | 97.98 KG
Technical Specifications
| Type | Pneumatic Diaphragm Pump |
|---|---|
| Air Exhaust Port Size (in) | 1 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 3/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | Santoprene |
| Center Section Material | Polypropylene |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water – Wastewater Transfer |
| Diaphragm Material | Santoprene |
| Fluid Inlet Size (cm) | 7.62 |
| Fluid Inlet Size (in) | 3 |
| Fluid Inlet Size (mm) | 76.2 |
| Fluid Outlet Size (cm) | 7.62 |
| Fluid Outlet Size (in) | 3 |
| Fluid Outlet Size (mm) | 76.2 |
| Fluid Section Material | Polypropylene |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | PTFE |
| Material | Polypropylene |
| Maximum Air Consumption (SCFM) | 275 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 103 |
| Maximum Flow Rate (GPM) | 280 |
| Maximum Flow Rate (L/min) | 1060 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Fluid Pressure (kPa) | 690 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Solid Size (cm) | 1.27 |
| Maximum Solid Size (in) | 0.5 |
| Maximum Solid Size (mm) | 12.7 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Storage Temperature (°C) | 0 |
| Minimum Storage Temperature (°F) | 32 |
| Model | Husky |
| Power Source | Air |
| Seat Material | Santoprene |
| Series | 3300 |
| Standards Met | CE |
| Weight (lb) | 200 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Air Pressure (MPa) | 0.7 |
| Connection Type | Center Flange ANSI/DIN |
| diaphragm_compatible_material | Santoprene |
