Description
Features
This revolutionary new cartridge injector system from Graco ushers in a new era of automatic lubrication system technology – transforming uptime, production capacity and profitability expectations through groundbreaking reductions in maintenance frequency, labor and costly downtime.
For mining, construction, off-road/on-road mobile equipment and other single-line parallel automatic lubrcation applications operating at or below 5000 psi.
- Greater Output Range — 0.015 to 0.150 in3, nearly doubling the output of our GL-1 injectors, reducing the need for crossporting multiple injectors in a system.
- Backwards Compatible — Uses same mounting pattern as GL-1 and GL-1 X series injectors that also match many competitive mounting patterns.
- Faster, Cleaner Installation — Minimize downtime from field damage and run lines as discreetly as possible with outlets on the front face and the bottom of the injector manifolds.
Specifications
UPC Product: 769946733631 Family Code: FAMHPM Unit of Measure: EA Height: 5 IN |12.7 CM Length: 6 IN |15.24 CM Width: 6 IN |15.24 CM Volume: .104 FT3 |.003 M3 Chargeable Weight: 2.81 KG | 6.2 LBS
Technical Specifications
| Compatible Material | Grease |
|---|---|
| For Use With | GCI注油器, GCI インジェクター, GCI Injectors, Injecteurs GCI, GCI 주입기, GCI-Einleitungsverteiler |
| Inlet Size (cm) | 0.9525 |
| Inlet Size (in) | 3/8 |
| Inlet Size (mm) | 9.525 |
| Inlet Thread Type | NPT |
| Material | Carbon Steel |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (bar) | 345 |
| Maximum Working Pressure (psi) | 5000 |
| Outlet Size (cm) | 0.9525 |
| Outlet Size (in) | 3/8 |
| Outlet Size (mm) | 9.525 |
| Outlet Thread Type | NPT |

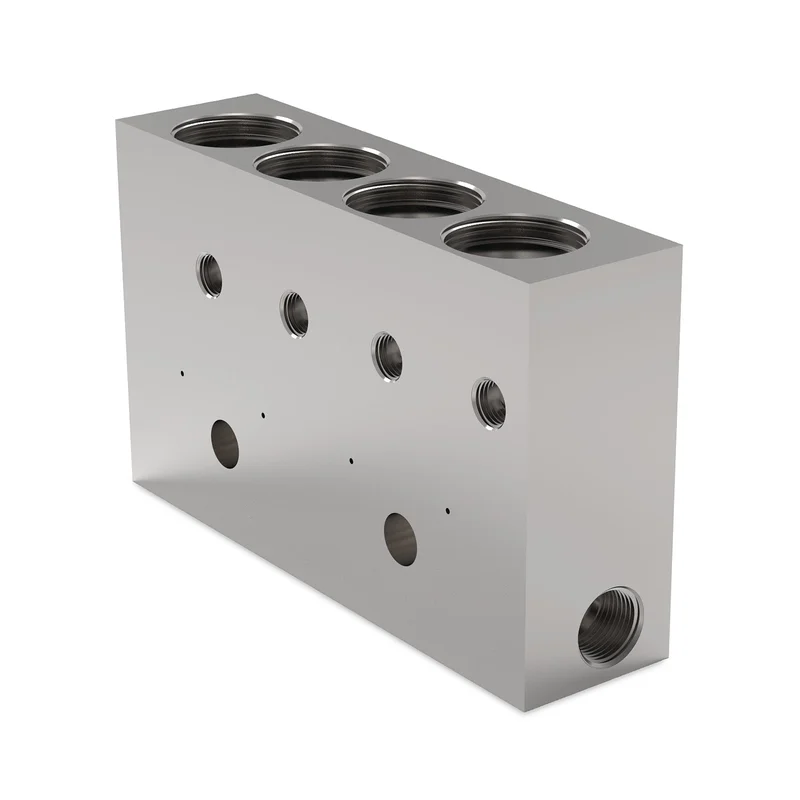

| Type | Injector Manifold |
| Application | In-Plant Machinery, Off-Road Equipment |
| Compatible Metering Device | Single Line Parallel |
| Model | GCI |
