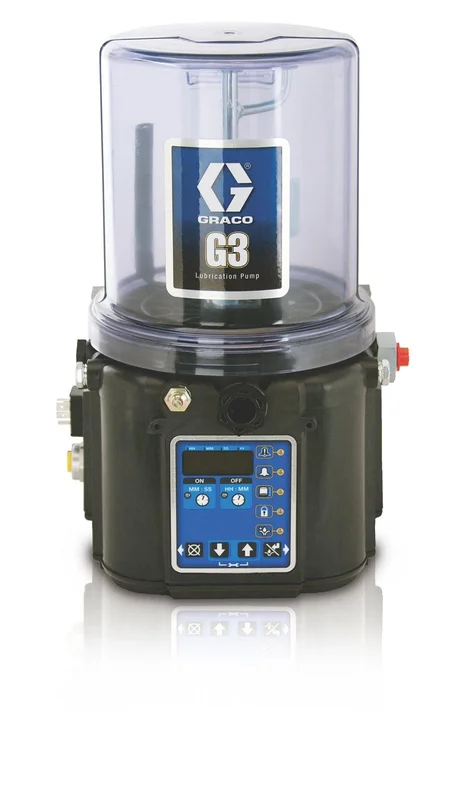

Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Pro has a flexible design that works with series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element – standard, plus room for two more. The ultimate in flexibility – for a high value, custom fit on your application.
- Built-in controller with selectable pump on/pump off timer
- Low level indicator provides low warning and shut-down alarm
- Manual run initiates lube cycle on-demand (remote option also available)
- Password protection safeguards settings
- Pre-lube function can initiate lube cycle on start-up
Specifications
UPC Product: 00633955594609 Family Code: FAMMPM Unit of Measure: EA Height: 18 IN |45.72 CM Length: 30.48 CM |12 IN Width: 12 IN |30.48 CM Volume: .042 M3 |1.5 FT3 Chargeable Weight: 7.48 KG | 16.5 LBS
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | On-Road Vehicles, Off-Road Equipment |
| Compatible Material | Oil |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Size (mm) | 6.3500 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | インジェクターベースシステム, Injector-Based Systems, Sistemas basados en inyectores, 先進的シリーズシステム, Series Progressive Systems, sistemas progresivos en serie |
| Includes | 低レベル, Low Level, Bajo nivel |
| Material | Alloy Steel, Aluminum, Amorphous Polyamide, Bronze, Buna-N, Carbon Steel, Chemically Lubricated Acetal, Nickel-Plated Alnico, Nylon, PTFE, Stainless Steel, Zinc-Plated Steel |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (bar) | 351.6 |
| Maximum Working Pressure (kPa) | 35160 |
| Maximum Working Pressure (psi) | 5100 |
| Model | G3 |
| Power Type | Electric |
| Reservoir Size (gal) | 0.528 |
| Reservoir Size (L) | 2 |
| Series | Pro |
| Voltage (V ac) | 90-240 |
| Weight (lb) | 13.3 |
| Wetted Material | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
| Alarm Relay Inductive Maximum Operating Voltage (VDC) | 220 |
| Alarm Relay Inductive Maximum Switching Capacity | 25 VA;30 W |
| Alarm Relay Inductive Minimum Permissible Load | 10 ?A;10m VDC |
| Alarm Relay Inductive Rated Load (A) | 1 |
| Alarm Relay Resistive Maximum Operating Current (A) | 3 |
| Alarm Relay Resistive Maximum Switching Capacity | 50 VA;60 W |
| Alarm Relay Resistive Minimum Permissible Load | 10 µA;10m VDC |
| Alarm Relay Resistive Rated Load (A) | 2 |
| Compatible Metering Device | Series Progressive |
| Control Options | Pro |
| Input Impedance | 1.1 |
| Input Load Current (mA @ 24 VDC) | 22 |
| Input Maximum Off Current (mA) | 1.5 |
| Input Maximum Residual Voltage (V) | 4 |
| Input Required Switch Type | Normally Open |
| Input Response Time (ms) | 60 |
| Input Sensor Voltage (VDC) | 24 |
| IP Rating | IP69K |
| Low Level Carry Current (A) | 1.2 |
| Low Level Contact Rating (W) | 10 |
| Low Level Switch Rating (VDC) | 200 |
| Low Level Switching Current (A) | 0.5 |
| Maximum Fill Inlet Pressure (bar) | 344.7 |
| Maximum Fill Inlet Pressure (kPa) | 34470 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V ac) | 264 |
| Minimum cST Grade (cST) | 40 |
| Minimum Voltage (V ac) | 88 |
| Number of Machine Count Sensor Inputs | 1 |
| Number of Pressure and Cycle Sensor Inputs | 3 |
| Number of Pump Elements | Up to 3 |
| Overall Depth (cm) | 22.9 |
| Overall Depth (in) | 9 |
| Overall Depth (mm) | 229 |
| Overall Height (cm) | 33.7 |
| Overall Height (in) | 13.25 |
| Overall Height (mm) | 337 |
| Overall Width (cm) | 20.3 |
| Overall Width (in) | 8 |
| Overall Width (mm) | 203 |
| Power Connection Type | DIN |
| Pump Output with 0 Spacers (cu in/min) | 0.25 |
| Pump Output with 1 Spacer (cu in/min) | 0.18 |
| Pump Output with 2 Spacers (cu in/min) | 0.12 |
| Vent Valve Maximum Operating Current (A) | 2 |
| Vent Valve Maximum Operating Power (W) | 48 |
| Vent Valve Output Voltage (VDC) | 24 |
| Voltage (V) | 90-240 VAC |
| Weight (kg) | 6 |
| Maximum Working Pressure (MPa) | 35.1 |
