Description
Features
Industry leading feature for your lube system needs.

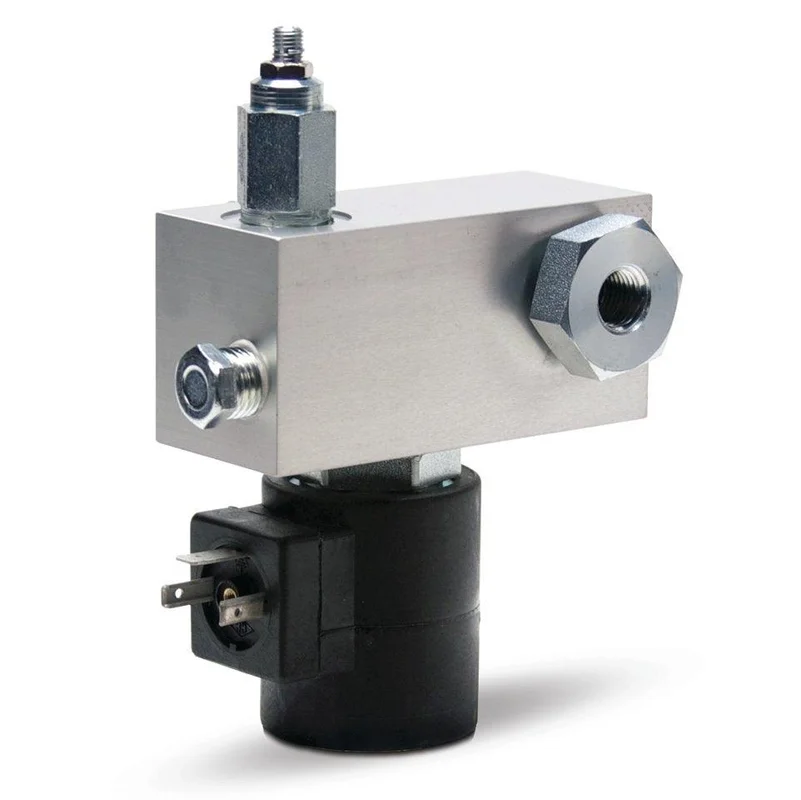

Vent valves are designed to be mounted to the G3 Electric Lubrication Pump to make it simple to install your injector based lube systems.
- Easily mounts to your G3 pump.
- Eliminates time and material costs associated with remote mounted vent valves.
- 12 VDC
- Normally Open
- The normally open valve works with the G3 Standard no control pump. With an external control just add power to the pump and valve to run a lube cycle, and remove power from both to vent pressure.
- Adjustable pressure relief is integrated into the valve, no need to purchase an additional relief valve.
- Deutsch Power Connection
Specifications
UPC Product: 00633955132719 Family Code: FAMMPM Unit of Measure: EA Height: 12.192 CM |4.8 IN Length: 6 IN |15.24 CM Width: 6 IN |15.24 CM Volume: .003 M3 |.1 FT3 Chargeable Weight: 1.22 KG | 2.7 LBS
Technical Specifications
| Application | On-Road Vehicles, Off-Road Equipment |
|---|---|
| Compatible Material | Grease |
| Factory Set Pressure (bar) | 280 |
| Factory Set Pressure (kPa) | 28000 |
| Factory Set Pressure (psi) | 4000 |
| For Use With | G3 泵, G3 Pumps, G3 Pumps, Pompes G3, Bombas G3, G3-Pumpen, G3-pompen |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 5 |
| Maximum Flow Rate (L/min) | 19 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Outlet Thread Type | NPT |
| Relief Rate (GPS) | 0.13 |
| Type | Vent Valve |
| Voltage (V dc) | 12 |
| Maximum Working Pressure (MPa) | 24 |
| Model | Trabon |
