Description
Features

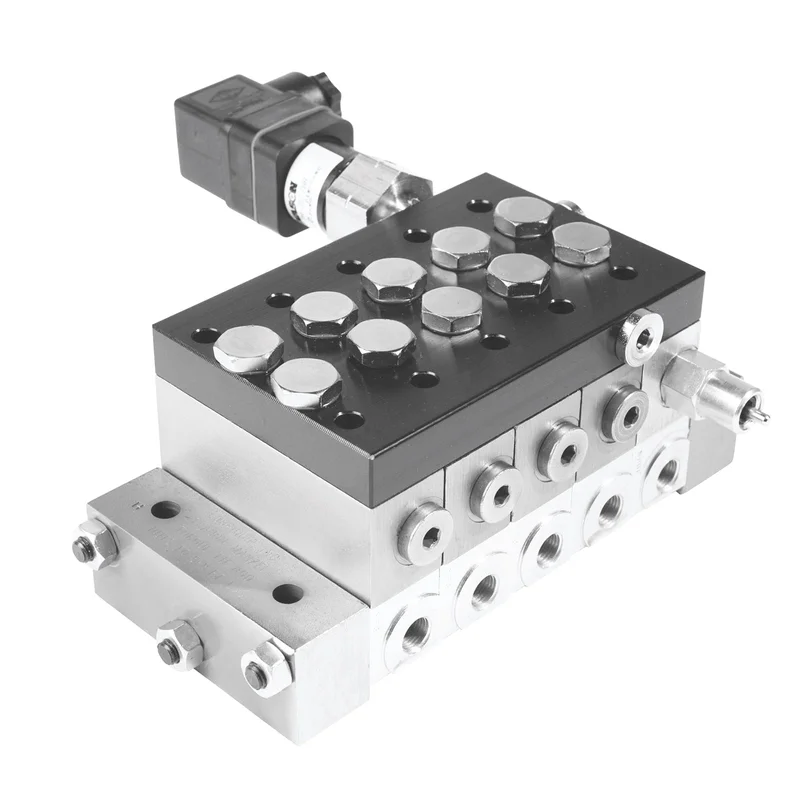

A Graco exclusive design! The Air Oil solution that detects air line or oil line faults in your system. Series progressive monitoring ensures your critical bearings are lubricated properly.
For use in steel mills, pulp and paper processing, high temperature and dirty environments.
-
Convenient manifold design mounts directly to the face of standard Graco series progressive divider valve assembly.
-
Check valve design prevents oil from being forced into the air system if lube lines get crushed or bearings get blocked.
-
Air combines with the oil after the fluid outlet check, preventing air from backing up into your source oil system.
-
Complete kits include manifold, air sensor, and check valves for easy installation.
Specifications
UPC Product: 633955481442 Family Code: FAMMPM Unit of Measure: EA Height: 2.5 IN |6.35 CM Length: 5 IN |12.7 CM Width: 4 IN |10.16 CM Volume: .029 FT3 |.001 M3 Chargeable Weight: 1.72 LBS | .78 KG
Technical Specifications
| Air Inlet Size (cm) | 0.3175 |
|---|---|
| Air Inlet Size (in) | 1/8 |
| Air Inlet Size (mm) | 3.175 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Maximum Air Pressure (bar) | 17 |
| Maximum Air Pressure (kPa) | 1700 |
| Maximum Air Pressure (psi) | 250 |
| Maximum Fluid Pressure (bar) | 17 |
| Maximum Fluid Pressure (kPa) | 1700 |
| Maximum Fluid Pressure (psi) | 250 |
| Maximum Operating Temperature (°C) | 93 |
| Maximum Operating Temperature (°F) | 200 |
| Material | Aluminum |
| Compatible Material | Oil |
