Description
The RoadPak HD is a high-performance striping machine that delivers twice the output, supports 5 or more guns for striping, and includes several enhancements to boost both productivity and line precision.

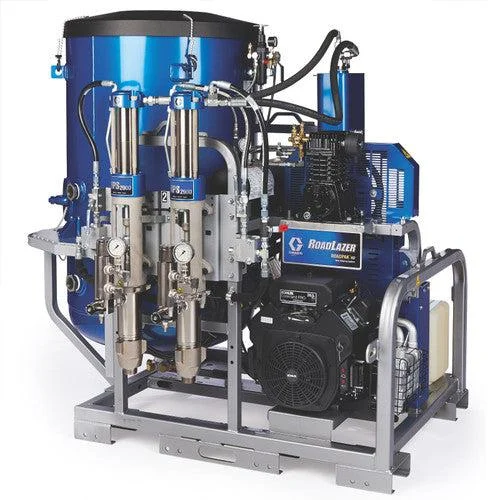

Option HD4 is a truck-mounted system equipped with a 2-pump RoadPak HD Pump System, a 1,350-pound Bead Tank, a 2-Pump 3-Gun RoadPak HD Gun Arm, RoadView HD Camera System, Advanced Controller, Simple Guide System, Gun Lift Winch Kit, Rear Seat Kit, and Steerable Carriage.
FEATURES
RoadPak HD 2-Pump System
- Enhanced Performance: Delivers up to double the output, reaching up to 37.9 LPM (10 GPM).
- Heavy-Duty RPS 2900 Hydraulic System: No-stall design ensures continuous productivity.
- Maximum Pressure: Can handle up to 200 bar.
- Proven Displacement Pump System: Known for delivering consistent and reliable paint pumping results over decades.
- Prime Valve: Keeps paint mixed and ready to use by allowing for recirculation.
Bead Tank System:
- ASME rated and capable of dispensing up to 18 kg of material per minute.
- Features a large fill spout for easy loading.
RoadPak HD 2-Pump/3-Gun Arm:
- Quick setup and high output.
- Supports 5+ guns: 5 spray guns and 5 bead guns.
- EasyMark Gun Adjustment System: Provides simple guide marks for quick gun alignment and easy operation.
Advanced Controller:
- Streamlines setup with built-in advanced patterns for instant recall.
- Pattern preview lets you visualize the selected colors and patterns quickly.
- Export functionality allows for “proof of job” documentation.
Heavy-Duty Modular Frame System:
- Built with a durable steel frame for long-lasting performance.
- Easily customizable in minutes to optimize your striping system.
- Compact size fits easily in various spaces, from pickup trucks to utility vehicle beds.
RoadView HD Camera System:
- In-Cab HD Display for viewing behind the paint and bead guns.
- Easily aligns new stripes with old lines.
- Offers adjustable views with 6mm and 16mm camera options.
Rear Seat Kit:
- Convenient control access for easy operation.
Steerable Carriage:
- Provides more accurate line application.
- Joystick controller with variable speed settings, allowing the driver to focus on the road while a second operator manages the striping.
Heavy-Duty Compressor:
- Delivers 100 psi (6.9 bar) at 13.1 cfm (0.37 m³/min).
- Supports up to 5 airless paint guns and 5 bead guns with the accumulation tank.
Kohler® Engine:
- Powered by a 19 HP (14.2 kW) Kohler engine.
- Proven reliability with over 15 years of service.
SPECIFICATIONS
| Bead System | Pressurized Bead System |
|---|---|
| Engine Brand | Kohler |
| Includes |
RoadPak Advanced Controller, RoadPak HD 2 Gun Arm, Slide-in Mounting Frame, Simple Guide System, Gun Lift Winch Kit, Rear Seat Kit, Steerable Carriage, RoadView HD Camera System |
| Maximum Flow Rate (GPM) | 10 |
| Maximum Flow Rate (L/min) | 37.8 |
| Maximum Sound Pressure Level (dB(A)) | 95.2 |
| Maximum Working Pressure (bar) | 200 |
| Maximum Working Pressure (kPa) | 2000 |
| Maximum Working Pressure (psi) | 2900 |
| Model | RoadLazer |
| Number of Guns | 3 |
| Number of Pumps | 2 |
| Power Rating (HP) | 26.5 |
| Power Rating (kW) | 19.8 |
| Series | RoadPak HD |
| Type | Truck-Mounted Line Striper |
| Bead Tank Size (lb) | 1350 |
| Mount Type | Slide-In Mounting Frame |
