Description

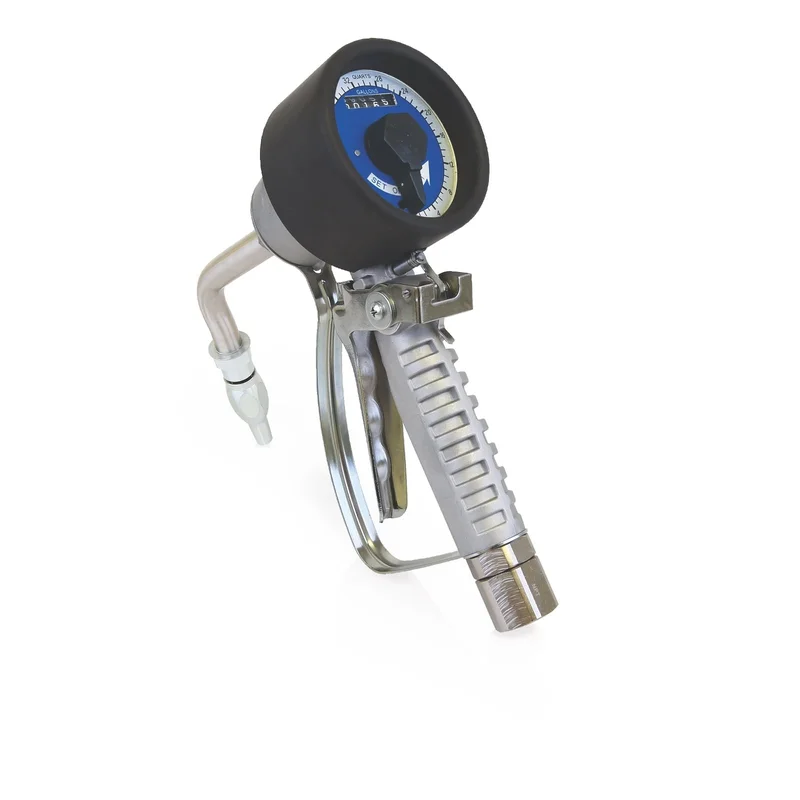

Mechanical meters are ideal for indoor or outdoor use in all size shops, typically handling applications in automotive dealerships, fast lube centers, and service shops. The meter featured is fitted with a multiple nozzle and extension options and are capable of pumping oil up to 8 gpm (30.2 lpm).
Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining.
- Impact-resistant shroud resists against scratches and protects knob and dial from damage
- Dial and face design made simple, easy to read and set
- Durable aluminum cast housing is balanced and lightweight for a comfortable grip
- Built-in totalizer to manage material usage
- Inlet 1/2 in. NPT with swivel
- Measures fluid in liters
- Features short extension with oil nozzle
- Preset meter automatically shuts-off flow when preset quantity has been dispensed
- 5 Year Warranty
UPC Product: 00633955692114 Family Code: FAMMMN Unit of Measure: EA Height: 12.192 CM |4.8 IN Length: 9.6 IN |24.384 CM Width: 22.86 CM |9 IN Volume: .24 FT3 |.007 M3 Chargeable Weight: 2.49 KG | 5.5 LBS
Technical Specifications
| Compatible Material | Oil, Antifreeze |
|---|---|
| Dispense Type | Preset |
| Display Type | Mechanical |
| Extension Type | Rigid |
| Includes | 裸加注枪, Bare Meter, Medidor sin accesorios, 베어 미터, 喷嘴配件包, Nozzle Kit, Kit de boquilla, 노즐 키트 |
| Inlet Size (cm) | 1.27 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 8 |
| Maximum Flow Rate (L/min) | 30 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 160 |
| Maximum Working Pressure (psi) | 1500 |
| Maximum Working Pressure (kPa) | 10340 |
| Maximum Working Pressure (bar) | 103.4 |
| Meter Accuracy (%) | ±1% |
| Meter Pressure Loss (psi) | 30 |
| Meter Pressure Loss (kPa) | 200 |
| Meter Pressure Loss (bar) | 2 |
| Metering Gun Weight (lb) | 3.5 |
| Metering Gun Weight (kg) | 1.58 |
| Wetted Material | Brass, Aluminum, Stainless Steel, TPE |
| Trigger Lock | Locking |
| Recommended Environment | Indoor, Outdoor |
| Outlet Thread Type | ORB |
| Outlet Size (cm) | 1.27 |
| Outlet Size (mm) | 12.7 |
| Outlet Size (in) | 0.75 |
| Nozzle Type | Manual |
| Minimum Operating Temperature (°F) | -50 |
| Minimum Operating Temperature (°C) | -45 |
| Type | Mechanical Metered Dispense Valve |
| Valve Type | Metered |
| Maximum Working Pressure (MPa) | 10 |
