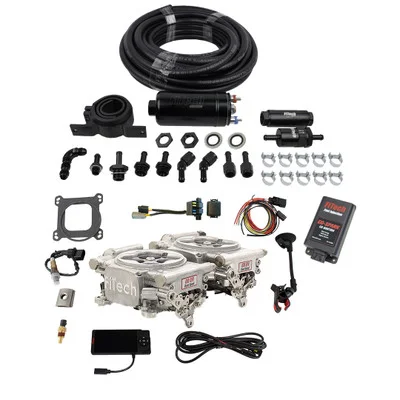

Go EFI 2×4 Aluminum Finish Kit w/Inline Fuel Pump & CDI Box (93161)

Description

The Go EFI 2×4 Aluminum Finish Kit w/ Inline Fuel Pump & CDI Box (93161) is a comprehensive kit designed to replace dual 4-barrel carburetors with modern electronic fuel injection (EFI). This system is engineered for high-performance engines, providing improved fuel delivery and enhanced spark for optimal combustion. It supports engines up to 625 horsepower (naturally aspirated) and includes essential components for a seamless conversion.

KEY FEATURES AND BENEFITS:

• Dual Quad EFI Conversion: Replaces two 4-barrel carburetors with dual throttle bodies, offering precise fuel control.
• Self-Learning EFI: Utilizes speed density (MAP-N) metering for automatic fuel adjustment, optimizing performance.
• Complete Kit: Includes ECU, wiring harness, sensors, inline fuel pump, and Go-Spark CDI ignition.
• High Horsepower Support: Designed for engines up to 625 HP, enhancing power and efficiency.
• Improved Ignition: Go-Spark CDI ignition provides enhanced spark for better combustion.
• Fuel Delivery Included: Comes with an inline fuel pump, fuel pressure regulator, and fuel hose.

SPECIFICATIONS:

• Maximum Horsepower: 625 HP
• Injection Style: Throttle body
• Timing Control: Compatible
• ECU: Included
• Fuel Pump: Included (inline)
• Metering Style: Speed density (MAP-N)
• Throttle Body Mounting Flange: 4-barrel square bore
• Venturi Quantity: 8
• Venturi Diameter: 43.00mm
• Airflow Rate: 1,700 cfm
• Injector Size: 36 lbs/hr
• Fuel Pump Flow Rating: 255 lph
• Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Remove Existing Carburetors: Detach the dual 4-barrel carburetors and related components from the intake manifold.
• Install Throttle Bodies: Mount the FiTech dual throttle bodies onto the 4-barrel square bore intake manifold.
• Install Sensors: Attach the included oxygen sensor, MAP sensor, IAT sensor, and TPS sensor to their designated locations.
• Connect Wiring Harness: Route and connect the wiring harness to the ECU and all sensors, following the provided instructions.
• Install Fuel Pump and Regulator: Mount the inline fuel pump and fuel pressure regulator, connecting them with the supplied fuel hose.
• Connect Ignition System: Install the Go-Spark CDI ignition system, connecting it to the distributor and power source.
• Connect Handheld Controller: Connect the handheld controller to the ECU for monitoring and initial setup.
• Initial Setup and Calibration: Follow the instructions on the handheld controller to perform the initial setup and allow the system to self-learn.
• Fine-Tuning: Monitor performance and make adjustments as needed using the handheld controller.

BENEFITS OF USING GO EFI 2X4 ALUMINUM FINISH KIT W/ INLINE FUEL PUMP & CDI BOX (93161):

• Improved Fuel Efficiency: Enhances overall performance.
• Precise Fuel Control: For optimal combustion.
• Enhanced Throttle Response: Better drivability.
• Reduced Emissions: Compared to traditional carburetors.
• Simplified Tuning: With self-learning capabilities.
• Reliable Ignition: From the included CDI system.

FEATURES:

• Dual 4-Barrel Throttle Body Design: For efficient airflow.
• Integrated ECU: Within one throttle body for compact installation.
• External Inline Fuel Pump: Included in the kit.
• Go-Spark CDI Ignition: Provides multiple sparks at low RPM.
• 4.5 Inch Handheld Display: For monitoring system performance.
• Wide Fuel Compatibility: Supports a range of fuel types.
• Sensors Included: For accurate readings and performance tuning.
• Designed for 4-Barrel Square Bore Intake Manifold: Ease of integration.
• Cast Aluminum, Polished Throttle Body Finish: For durability and aesthetics.
• Wiring Harness and Calibration Module: Included for a straightforward setup.
