FiTech Ultra Ram SBC 550HP 92mm Cast Body w/ Force Fuel & CDI (93531)

Description

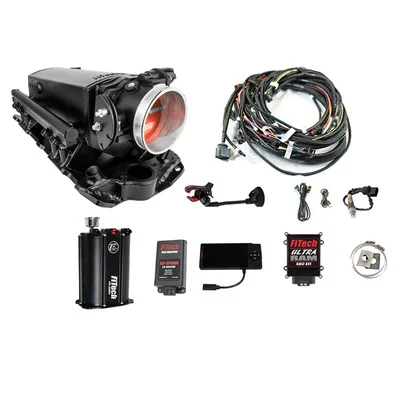

The FiTech Ultra Ram SBC 550HP 92mm Cast Body w/ Force Fuel & CDI (93531) is a complete electronic fuel injection solution designed for small block Chevrolet engines, capable of supporting up to 650 horsepower. This kit offers a comprehensive upgrade from carburetor systems, providing enhanced performance, drivability, and fuel efficiency. It includes the Ultra Ram intake manifold, a 92mm throttle body, a Force Fuel delivery system, and a Go-Spark CD ignition box, ensuring a robust and reliable EFI setup.

KEY FEATURES AND BENEFITS:

• Multi-Port Fuel Injection: Provides precise fuel delivery for optimal performance.
• Self-Learning ECU: Adapts to engine conditions for improved drivability.
• User-Tunable Parameters: Allows for customized performance adjustments.
• Force Fuel System: Includes a 340 lph fuel pump for consistent fuel pressure.
• Go-Spark CD Ignition: Improves spark performance, especially at lower RPMs.
• Simplified Installation: Comes with included sensors and wiring harness for easy setup.

SPECIFICATIONS:

• Maximum Horsepower: 650 HP
• Injection Style: Multi-port
• Throttle Body: 92mm, cast aluminum
• Fuel Pump: 340 lph, external
• Fuel Pressure: 58 psi (regulated)
• ECU: Included, self-learning and user-tunable
• Ignition: Go-Spark CD
• Intake Manifold: Ultra Ram, aluminum
• Injector Size: 36 lbs/hr
• Fuel Compatibility: Gasoline, alcohol, methanol, flex fuel

HOW TO USE:

• Preparation: Remove the existing carburetor and intake manifold.
• Installation: Install the Ultra Ram intake manifold onto the engine block.
• Fuel System: Mount the Force Fuel system and connect the fuel lines.
• Throttle Body: Attach the 92mm throttle body to the intake manifold.
• Injectors: Connect the fuel injectors to the fuel rails.
• Sensors: Install and connect all provided sensors (O2, MAP, IAT, TPS).
• Wiring: Connect the wiring harness to the ECU and engine components.
• Ignition: Install the Go-Spark CD ignition and connect it to the distributor.
• ECU Setup: Use the handheld touchscreen to input engine specifications.
• Initial Start: Start the engine and allow the self-learning ECU to adjust fuel parameters.
• Tuning: Fine-tune the system using the touchscreen as needed.

BENEFITS OF USING THE FITECH ULTRA RAM SBC 550HP 92MM CAST BODY W/FORCE FUEL & CDI (93531):

• Improved Fuel Efficiency: Compared to traditional carburetor systems.
• Enhanced Throttle Response: Provides better drivability and performance.
• Increased Horsepower and Torque: Maximizes engine output.
• Reliable Cold Start Performance: Ensures smooth starts in various conditions.
• Reduced Emissions: Cleaner operation compared to carbureted engines.
• Forced Induction Compatibility: Able to handle supercharged or turbocharged setups.

FEATURES:

• 92mm Cast Aluminum Throttle Body: Provides up to 1,250 cfm airflow for high performance.
• 340 lph External Fuel Pump: Equipped with an internal regulator for consistent pressure.
• 4.5-Inch Touchscreen Display: For easy configuration and monitoring.
• Aluminum Black Anodized Ultra Ram Intake Manifold: For optimal airflow and durability.
• 36 lbs/hr Fuel Injectors: For effective fuel delivery.
• Speed Density (MAP) Based Fuel Metering: For accurate fueling calculations.
• Compatible with Various Distributor Types: Ensures versatility in installation.
• Complete Sensor Package Included: Simplifies installation and setup.
• Multi-Port Fuel Rails: For effective fuel distribution.
