FiTech Ultra Ram EFI 650HP w/Force Fuel (35301)

Description

The FiTech Ultra Ram EFI 650HP w/Force Fuel (35301) provides a complete electronic fuel injection solution for small block Chevy engines. This kit replaces your carburetor with a self-learning EFI system, enhancing engine performance and efficiency. It includes all necessary components for a straightforward conversion.

KEY FEATURES AND BENEFITS:

• Comprehensive EFI Upgrade: Supports up to 650 horsepower.
• Force Fuel System: Ensures consistent fuel delivery.
• Self-Learning ECU: Simplifies tuning, adapting to your engine’s needs.

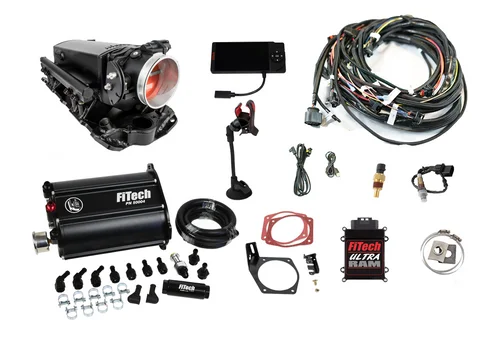

• Complete Package: Includes an intake manifold, throttle body, injectors, and all necessary sensors.
• Touchscreen Controller: The 4.5-inch touchscreen allows for easy monitoring and adjustments.

SPECIFICATIONS:

• Engine Compatibility: Small Block Chevy (SBC)
• Maximum Horsepower: 650 HP
• Fuel Type: Gasoline, Alcohol, Methanol, E-85
• Intake Manifold: Aluminum, Black Anodized
• Throttle Body: 92mm, Cast Aluminum
• Fuel System: Force Fuel (340 lph pump)
• ECU: Remote Mount, Self-Learning
• Injector Size: 36 or 39 lbs/hr (verify with manufacturer)
• Controller: 4.5-inch Touchscreen
• Sensors: MAP, IAT, TPS, Oxygen (WBO2)

HOW TO USE:

• Remove Carburetor: Take off the existing carburetor and intake manifold.
• Install Intake Manifold: Mount the FiTech Ultra Ram intake manifold onto the engine.
• Throttle Body Installation: Mount the throttle body and connect the provided fuel rails and injectors.
• Install Force Fuel System: Set up the fuel pump and reservoir, connecting to the existing fuel lines.
• Mount ECU: Position the remote ECU and connect the wiring harness to the engine sensors.
• Oxygen Sensor Installation: Install the oxygen sensor into the exhaust system.
• Connect Controller: Link the handheld controller to the ECU and input engine specifications.
• Start Engine: Start the engine and allow the self-learning system to adjust the fuel mixture.
• Fine-Tuning: Use the handheld controller to make any necessary adjustments.

BENEFITS OF USING THE FITECH ULTRA RAM EFI 650HP W/FORCE FUEL (35301):

• Improved engine performance and throttle response.
• Enhanced fuel efficiency.
• Simplified engine tuning through self-learning technology.
• Consistent fuel delivery with the “Force Fuel” system.
• Reduced emissions compared to carbureted systems.
• Modernized engine control with a touchscreen interface.

FEATURES:

• High Airflow Intake: Sheet metal intake manifold designed for high airflow.
• Throttle Body: 92mm cast aluminum throttle body with a 4-bolt GM LS2 style mounting flange.
• External Fuel Pump: 340 LPH fuel pump inside a surge tank.
• Remote Mounted ECU: Helps with installation flexibility.
• Wideband Oxygen Sensor: For accurate air/fuel ratio monitoring.
• Complete Wiring Harness: Comes with labeled connectors for ease of installation.
• Multi-Fuel Compatibility: Ability to run various fuel types.
• Included Fuel Pressure Regulator: For optimal fuel pressure management.
• All Required Sensors: Comprehensive sensor package included.
