FiTech Ultra Ram 800 HP Chevy Big Block Rectangle Port EFI (36232)

Description

The FiTech Ultra Ram 800 HP Chevy Big Block Rectangle Port EFI (36232) provides a complete electronic fuel injection solution for high-performance big block Chevy engines. Designed for power, this system supports up to 800 horsepower and offers improved drivability and fuel efficiency compared to traditional carburetors. With its self-learning ECU and comprehensive kit, upgrading your engine has never been easier.

KEY FEATURES AND BENEFITS:

• Achieve up to 800 horsepower with this high-performance port fuel injection system.
• The self-learning ECU simplifies tuning, eliminating the need for extensive laptop adjustments.
• The 102mm throttle body delivers high airflow, supporting maximum engine performance.

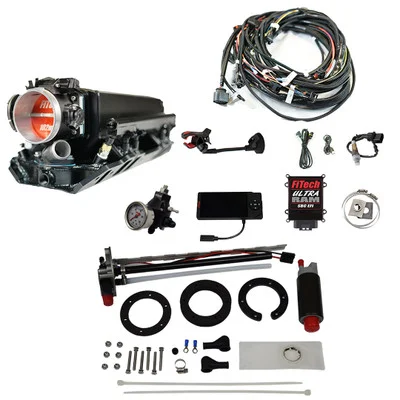

• Complete kit includes intake manifold, fuel rails, injectors, and all necessary sensors for a straightforward installation.
• Compatible with forced induction systems for increased power potential.
• Compatible with multiple fuel types.

SPECIFICATIONS:

• Maximum Horsepower: 800 HP
• Injection Style: Multi-port
• Timing Control Compatible: Yes
• Power Adder Compatible: Yes (Forced induction)
• ECU Included: Yes
• Intake Manifold Material: Aluminum
• Intake Finish: Black Anodized
• Throttle Body Size: 102mm
• Injector Size: 55 lbs/hr
• Fuel Type: Alcohol, Gasoline, Methanol, Flex
• Compatibility: Chevy Big Block Rec Port, HEI Large Cap Distributor, GM LS2 4-bolt throttle body flange

HOW TO USE:

• Installation:
  • Remove the existing carburetor and intake manifold.
  • Install the FiTech Ultra Ram intake manifold and throttle body.
  • Mount the ECU in a suitable location.
  • Install the fuel rails and injectors.
  • Install the in-tank fuel pump.
  • Connect the wiring harness to the engine sensors and ECU.
  • Install the oxygen sensor.
• Initial Setup:
  • Use the color touch screen monitor to input basic engine specifications.
  • Follow the on-screen prompts for initial system setup.
• Self-Learning:
  • Start the engine and allow the self-learning ECU to adjust fuel delivery.
  • Drive the vehicle under various conditions to optimize tuning.
• Verification:
  • Verify fuel pressure.
  • Verify all sensor readings via the touch screen.
  • Check for any fuel or air leaks.

BENEFITS OF USING THE FITECH ULTRA RAM 800 HP CHEVY BIG BLOCK RECTANGLE PORT EFI (36232):

• Improved engine performance and horsepower output.
• Enhanced drivability and throttle response.
• Increased fuel efficiency compared to traditional carburetors.
• Simplified tuning with the self-learning ECU.
• Complete kit provides all necessary components for installation.
• Allows the use of multiple fuel types.

FEATURES:

• Matte black anodized aluminum intake manifold.
• 102mm cast aluminum throttle body.
• Flow-matched 55 lbs/hr injectors.
• Integrated MAP, IAT, and TPS sensors.
• In-tank fuel pump included.
• Fuel pressure regulator included.
• Oxygen sensor included.
• Wiring harness included.
• Calibration module included.
