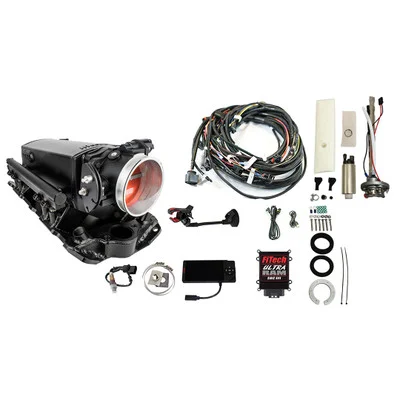

FiTech Ultra Ram 650 HP Chevy Small Block EFI w/ 340 LPH Pump (36631)

Description

The FiTech Ultra Ram 650 HP Chevy Small Block EFI w/ 340 LPH Pump (36631) provides a complete solution for converting your carbureted small block Chevy engine to modern electronic fuel injection. This kit is designed for performance enthusiasts seeking improved power, efficiency, and drivability. It features a robust design capable of supporting up to 650 horsepower, making it suitable for a wide range of applications.

KEY FEATURES AND BENEFITS:

• Multi-Port Fuel Injection: Significant performance enhancements through precise fuel delivery.
• Self-Tuning Feature: Simplifies setup for optimal air/fuel ratios with minimal user input.
• In-Tank 340 LPH Fuel Pump: Ensures consistent fuel delivery for reliable operation.
• Forced Induction Compatibility: Provides flexibility for advanced engine setups.
• High Airflow Support: 92mm throttle body and 39 lbs/hr injectors for maximum power output.
• 4.5 Inch Display: Allows for easy monitoring and adjustments during operation.

SPECIFICATIONS:

• Maximum Horsepower: 650 HP
• Injection Style: Multi-port
• Fuel Pump: 340 LPH In-tank
• Throttle Body: 92mm, GM LS2 4-bolt
• Injectors: 39 lbs/hr
• ECU: Included, remote mount
• Metering Style: Speed density (MAP-N)
• Intake Material: Aluminum, black anodized
• Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex
• Display: 4.5 inch color touch screen

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and intake manifold.
• Fuel System Installation: Install the in-tank fuel pump assembly in your fuel tank.
• Intake and Throttle Body Installation: Mount the FiTech Ultra Ram intake manifold and 92mm throttle body onto the engine.
• Injector and Fuel Rail Connection: Connect the pre-installed fuel rails and injectors to the fuel lines.
• ECU and Wiring Harness Installation: Mount the ECU and connect the wiring harness to the engine sensors and injectors.
• Sensor Installation: Install the oxygen, coolant, MAP, IAT, and TPS sensors.
• Display Connection: Connect the handheld display to the ECU.
• Initial Setup: Power on the system and input engine specifications into the display.
• Self-Tuning: Start the engine and allow the system to self-tune.
• Fine-Tuning (Optional): Use the display to make adjustments as needed.

BENEFITS OF USING THE FITEC ULTRA RAM 650 HP CHEVY SMALL BLOCK EFI W/ 340 LPH PUMP (36631):

• Improved Performance: Enhanced engine performance and throttle response.
• Better Fuel Efficiency: More efficient compared to traditional carburetors.
• Simplified Installation: Complete kit with self-tuning capabilities for easier setup.
• Consistent Fuel Delivery: Maintains reliable air/fuel ratios under various conditions.
• Flexibility for Modifications: Supports advanced engine modifications and setups.
• Modern Technology: Modernizes older engines with current fuel injection technology.

FEATURES:

• Pre-Installed Fuel Rails and Injectors: For quick and easy installation.
• Complete Wiring Harness: With labeled connections for straightforward setup.
• Included Wideband Oxygen Sensor: For accurate air/fuel ratio monitoring.
• Robust ECU: Features a user-friendly interface for easy adjustments.
• Integrated Fuel Pressure Regulator: Ensures stable fuel pressure.
• Sheet Metal Intake Manifold: Designed for optimal airflow.
• Cast Aluminum Throttle Body: Durable and efficient design.
• Compatible with Various Fuel Types: Offers versatility for different applications.
• All Necessary Sensors Included: For comprehensive monitoring and control.
• User Tunable: Allows tuning beyond self-learning parameters.
