FiTech Ultra Port LS 750HP EFI Black System w/ LS3 Intake (37012)

Description

The FiTech Ultra Port LS 750HP EFI Black System w/ LS3 Intake (37012) delivers advanced electronic fuel injection for high-performance LS engines. Designed for power and precision, this kit provides comprehensive engine and transmission management, making it ideal for enthusiasts seeking improved fuel delivery and control.

KEY FEATURES AND BENEFITS:

• High Power Support: This system supports up to 750 horsepower, offering significant performance gains.
• Precise Fuel Control: Port injection ensures enhanced throttle response and fuel delivery accuracy.

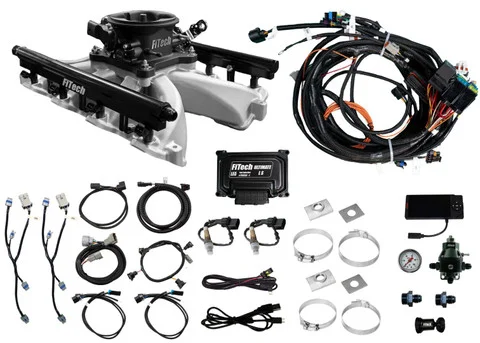

• Comprehensive Kit: Includes LS3 intake manifold, fuel rails, 55 lbs/hr injectors, external Retro Port LS ECU, and handheld touchscreen monitor.
• Integrated Transmission Control: Seamless operation with built-in transmission management.
• User-Friendly Setup: Self-learning software simplifies installation and tuning.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Timing Control: Compatible
• Power Adder: Boost/Nitrous compatible
• ECU: Included
• Transmission Control: Included
• Metering Style: Speed density (Map-N)
• Intake Manifold: LS3 Aluminum
• Throttle Body: 4-barrel, 1000 CFM
• Injector Size: 55 lbs/hr

HOW TO USE:

• Install Intake: Install the LS3 intake manifold and fuel rails.
• Mount Throttle Body: Mount the 4-barrel throttle body.
• Connect Injectors: Connect the 55 lbs/hr injectors to the fuel rails.
• Install ECU: Install the Retro Port LS ECU and connect the wiring harness.
• Attach Sensors: Connect the oxygen, TPS, IAT, and IAC sensors.
• Connect Monitor: Connect the handheld touchscreen monitor.
• Fuel System Check: Ensure a complete fuel system (pump, lines, fittings) is installed.
• Input Parameters: Use the handheld monitor to input basic engine parameters.
• Start Engine: Start the engine and allow the self-learning software to calibrate.
• Fine-Tune: Adjust as needed using the handheld monitor.

BENEFITS OF USING THE FITECH ULTRA PORT LS 750HP EFI BLACK SYSTEM W/ LS3 INTAKE (37012):

• Optimal Performance: Provides precise fuel delivery for enhanced engine performance.
• Smooth Operation: Integrated transmission control ensures seamless performance.
• Simplified Setup: Self-learning software reduces the need for extensive tuning.
• Complete Installation Kit: Includes all necessary components for straightforward installation.
• Enhanced Throttle Response: System design improves throttle response and fuel efficiency.

FEATURES:

• Universal Throttle Body: 4-barrel design for broad compatibility.
• Reliable ECU: External Retro Port LS ECU for dependable engine management.
• Handheld Monitor: Touchscreen monitor with magnetic mount for easy adjustments.
• Versatile Timing Setup: Compatible with various timing control configurations.
• High-Flow Injectors: 55 lbs/hr fuel injectors for optimal performance.
• Speed Density Metering: Speed density (Map-N) metering style.
• Sleek Finish: Black finish on throttle body for aesthetic appeal.
• Complete Wiring Harness: Includes sensor package for streamlined installation.
