FiTech Retro LS 650 HP Classic Gold EFI w/ Force Fuel Tank (35571)

Description

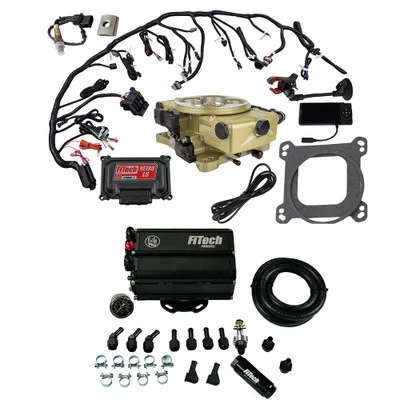

The FiTech Retro LS 650 HP Classic Gold EFI w/ Force Fuel Tank (35571) delivers modern electronic fuel injection (EFI) performance while retaining the classic aesthetic of a carburetor. This system is designed for LS engines, offering a comprehensive solution for improved horsepower and fuel efficiency. The kit includes a gold throttle body, pre-terminated wiring harness, and a handheld touchscreen controller for easy tuning.

KEY FEATURES AND BENEFITS:

• This system provides up to 650 horsepower capability for LS engines.
• It offers transmission control for GM 4L60/65/80E transmissions, allowing for precise adjustments to shift points.
• Self-tuning functionality simplifies the setup process, and the included Force Fuel mini surge tank ensures a consistent fuel supply.
• The kit includes all necessary sensors and a wideband oxygen sensor for accurate monitoring.

SPECIFICATIONS:

• Maximum Horsepower: 650 HP
• Injection Style: Throttle body
• Timing Control: Compatible
• Transmission Control: Included (4L60/65/80E)
• Throttle Body Mounting Flange: 4-barrel square bore
• Injector Size: 80 lbs/hr
• Airflow Rate: 950 CFM
• Metering Style: Speed density (MAP-N)
• Fuel System: Force Fuel mini surge tank

HOW TO USE:

• Install the gold throttle body onto the intake manifold.
• Connect the pre-terminated wiring harness to the LS engine sensors.
• Mount the remote ECU and connect the transmission control wiring.
• Install the Force Fuel mini surge tank and connect the fuel lines.
• Mount the wideband oxygen sensor in the exhaust.
• Connect the handheld touchscreen controller.
• Start the engine and allow the self-tuning feature to calibrate the system.
• Use the handheld controller to fine-tune settings as needed.

BENEFITS OF USING THE FITECH RETRO LS 650 HP CLASSIC GOLD EFI W/ FORCE FUEL TANK (35571):

• This system allows for the benefits of EFI, such as improved fuel efficiency and reliable starts, while maintaining the classic look of a carburetor.
• The transmission control feature allows for customized shift points, enhancing the driving experience.
• The self-tuning feature reduces the complexity of installation and setup.
• The Force Fuel system ensures a stable fuel supply, improving overall performance.

FEATURES:

• Classic gold throttle body design.
• Pre-terminated wiring harness with LS-specific sensors.
• Remote ECU with 4L60/65/80E transmission control.
• Handheld touchscreen controller for easy tuning.
• Wideband oxygen sensor for accurate monitoring.
• Force Fuel mini surge tank with internal fuel pump and regulator.
• 80 lbs/hr injectors for high-performance applications.
• 950 CFM airflow rating.
• 44 mm Venturi Diameter.
• Speed density metering.
