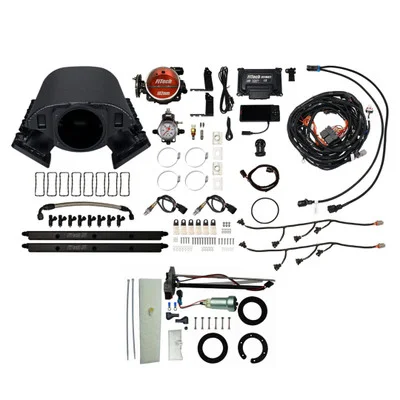

FiTech Rebel LS 750HP EFI Short Cath. 440 LPH Pump & Regu. Kit (76190)

Description

The FiTech Rebel LS 750HP EFI Short Cath. 440 LPH Pump & Regu. Kit (76190) is a comprehensive solution designed to convert your LS engine to modern electronic fuel injection. This kit provides everything necessary for a complete installation, including the intake manifold, fuel delivery system, and electronic control unit. It’s engineered to support up to 750 horsepower and is compatible with power adders like boost and nitrous oxide. This system offers improved engine performance, efficiency, and drivability.

KEY FEATURES AND BENEFITS:

• Complete Electronic Fuel Injection System: Specifically designed for LS engines.
• Supports Up to 750 Horsepower: Ensures high performance for demanding applications.
• Short Cathedral Intake Manifold: Optimizes airflow for enhanced efficiency.
• In-tank 440 LPH Fuel Pump Module: Provides consistent fuel delivery.
• Go Fuel Regulator Master Kit: Allows for precise fuel pressure control.
• Compatibility with Power Adders: Supports boost and nitrous oxide for added performance.
• Improved Engine Performance and Efficiency: Enhances overall drivability.
• Includes All Necessary Sensors and Wiring: Simplifies installation process.
• Versatile Fuel Compatibility: Supports flex fuel, gasoline, methanol, and alcohol.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Timing Control: Compatible
• Power Adder Compatibility: Yes (Boost/Nitrous oxide)
• ECU: Included
• Fuel Pump: Included (In-tank 440 LPH)
• Intake Manifold: Included (Short Cathedral)
• Intake Material: Aluminum
• Intake Finish: Black Anodized
• Throttle Body: 102 mm, 4-bolt GM LS2 flange
• Injectors: 55 lbs/hr
• Fuel Type: Alcohol, Gasoline, Methanol, Flex
• Compatibility: Standard deck LS engines

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing intake manifold and carburetor (if applicable).
• Fuel System Installation: Install the in-tank fuel pump module and connect the fuel lines, ensuring proper sealing. Install the Go Fuel regulator and connect it to the fuel lines.
• Intake Manifold Installation: Install the FiTech intake manifold onto the LS engine, ensuring proper gasket placement and torque specifications.
• Throttle Body and Sensor Installation: Mount the 102 mm throttle body onto the intake manifold. Install the MAP, IAT, and TPS sensors onto their respective locations.
• Injector and Fuel Rail Installation: Install the 55 lbs/hr injectors into the fuel rails and mount the fuel rails onto the intake manifold.
• Wiring Harness Connection: Connect the wiring harness to the ECU and all sensors, following the FiTech wiring diagram.
• ECU Setup: Connect the calibration module and configure the ECU settings according to your engine specifications.
• Oxygen Sensor Installation: Install the oxygen sensor into the exhaust system.
• Testing and Tuning: Start the engine and verify fuel pressure and engine operation. Fine-tune the ECU settings as needed.
• Final Checks: Check for any leaks and ensure all connections are secure.

BENEFITS OF USING THE FITECH REBEL LS 750HP EFI SHORT CATH. 440 LPH PUMP & REGU. KIT (76190):

• Enhanced Engine Performance: Improved throttle response and power output.
• Improved Fuel Efficiency: Reduces emissions and optimizes fuel usage.
• Simplified Engine Tuning: Makes calibration easier.
• Reliable Fuel Delivery: Ensures performance under various operating conditions.
• Compatibility with High-Performance Modifications: Adaptable for future upgrades.
• Modernized Fuel Delivery System: Streamlines the fuel injection process.
• Wider Range of Fuel Types: Increases flexibility in fuel choices.

FEATURES:

• 102 mm throttle body for increased airflow.
• Black anodized aluminum intake manifold for durability and aesthetic appeal.
• In-tank 440 LPH fuel pump for consistent fuel pressure.
• 55 lbs/hr fuel injectors for precise fuel delivery.
• Comprehensive sensor package for accurate engine management.
• Complete wiring harness for a simple installation.
• Calibration module included for easy setup.
• Go Fuel regulator included for pressure control.
