FiTech Rebel LS 750HP EFI Cath. TC, 600HP Pump, Reg/Coil w/LED (79491)

Description

The FiTech Rebel LS 750HP EFI Cath. TC, 600HP Pump, Reg/Coil w/LED (79491) offers a complete electronic fuel injection solution designed to modernize and enhance the performance of LS engines. This kit provides precise fuel delivery, improved engine control, and increased horsepower. It includes all necessary components for a comprehensive upgrade, from the intake manifold to the fuel pump and ignition system.

KEY FEATURES AND BENEFITS:

• Designed for LS Engine Swaps: Provides a significant performance boost up to 750 horsepower.
• Multi-Port Fuel Injection: Ensures accurate fuel distribution for better efficiency and power output.
• Integrated Transmission Controller: Manages both engine and transmission functions seamlessly.
• Speed Density Metering: Uses MAP-N for reliable operation under varying conditions.
• Power Adder Compatibility: Supports boost and nitrous oxide for increased performance.
• Consistent Fuel Pressure: Integrated fuel pump and regulator maintain optimal fuel delivery.
• Enhanced Ignition: Included coil packs provide strong ignition for optimal combustion.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Timing Control Compatible: Yes
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump Included: Yes (In-tank, 600 HP)
• Transmission Controller Included: Yes
• Metering Style: Speed density (MAP-N)
• Intake Manifold Included: Yes (Short cathedral port, Aluminum)
• Throttle Body: 102mm (GM LS2 4-bolt)
• Injectors: 55 lbs/hr
• Fuel Type: Alcohol, Gasoline, Methanol, Flex
• Compatibility: Standard deck LS engine blocks

HOW TO USE:

• Preparation: Disconnect the vehicle’s battery and remove the existing intake manifold and fuel system.
• Installation: Install the FiTech short cathedral port intake manifold onto the LS engine.
• Fuel System: Mount the Go Fuel in-tank fuel pump within the fuel tank and connect the Go Fuel tight fit regulator.
• Injector Installation: Install the 55 lbs/hr fuel injectors into the intake manifold’s fuel rails.
• Throttle Body and Sensors: Attach the 102mm throttle body and connect the MAP, IAT, and TPS sensors.
• Wiring Harness: Connect the provided wiring harness to the ECU, injectors, sensors, fuel pump, and coil packs.
• Coil Pack Installation: Mount the Go Spark LS3-style coil packs and connect them to the wiring harness.
• Oxygen Sensor: Install the oxygen sensor into the exhaust system.
• ECU Programming: Use the hand-held controller to program the ECU with the desired engine parameters.
• Transmission Control: Connect and configure the transmission controller according to your transmission type.
• Testing: Verify all connections and start the engine, making adjustments as needed via the hand-held controller.

BENEFITS OF USING THE FITECH REBEL LS 750HP EFI CATH. TC, 600HP PUMP, REG/COIL W/LED (79491):

• Improved Engine Performance: Increases horsepower and overall efficiency.
• Enhanced Fuel Efficiency: Precise fuel delivery reduces fuel consumption.
• Better Throttle Response: Provides smoother acceleration and drivability.
• Integrated Transmission Control: Ensures seamless operation with various transmissions.
• Fuel and Power Adder Compatibility: Works with multiple fuel types and supports power enhancements.
• Modernized Engine Management: Upgrades engine control with advanced ECU features.
• Consistent Engine Operation: Optimized fuel and ignition control for reliable performance.

FEATURES:

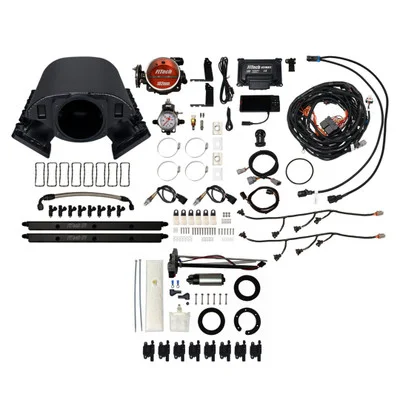

• Complete Kit: Includes intake manifold, fuel pump, regulator, and coil packs.
• High-Flow Throttle Body: 102mm throttle body allows for increased airflow.
• Performance Fuel Injectors: 55 lbs/hr injectors support high-performance applications.
• Speed Density Fuel Management: MAP-N metering ensures precise fuel calculations.
• Transmission Control Module: Integrated for advanced transmission management.
• Hand-Held Control Screen: Allows easy tuning and adjustments.
• LED Coil Pack Indicators: Provides visual diagnostics for troubleshooting.
• In-Tank Fuel Pump: Ensures efficient and reliable fuel delivery.
• Tight Fit Fuel Pressure Regulator: Maintains stable fuel pressure for optimal performance.
