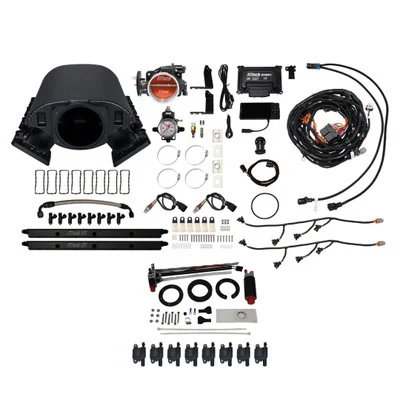

FiTech Rebel LS 500HP EFI Cath Intake, InTank Mod, Regu & Coil (78688)

Description

The FiTech Rebel LS 500HP EFI Cath Intake, InTank Mod, Regu & Coil (78688) is a comprehensive solution for upgrading LS engines. This kit replaces traditional carburetors with a modern electronic fuel injection system, providing improved performance and efficiency. It includes all necessary components for a complete installation, from the intake manifold to the fuel delivery and ignition systems.

KEY FEATURES AND BENEFITS:

• This system is designed for LS engines and supports up to 500 horsepower.
• Features multi-port fuel injection, delivering fuel directly to each cylinder for optimal performance.
• The self-tuning ECU simplifies the setup process, automatically adjusting fuel delivery based on engine conditions.
• Compatible with boosted and nitrous oxide applications, and can run on gasoline, alcohol, methanol, and flex-fuel.
• Includes an in-tank fuel pump module, a Go Fuel regulator, and an LS3 coil pack set for reliable fuel delivery and ignition.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Timing Control: Compatible
• Power Adder: Compatible (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump: In-tank
• Intake Manifold: Short Cathedral
• Throttle Body: 92mm, 4-bolt GM LS2
• Injectors: 36 lbs/hr
• Fuel Type: Gasoline, Alcohol, Methanol, Flex
• Compatibility: LS Engines with Cathedral Port Heads

HOW TO USE:

• Remove Existing Components: Disconnect and remove the existing carburetor or fuel injection system.
• Install Intake Manifold: Mount the provided short cathedral intake manifold onto the LS engine.
• Install Fuel System: Install the in-tank fuel pump module and connect the Go Fuel regulator.
• Mount Throttle Body: Attach the 92mm throttle body to the intake manifold.
• Install Fuel Rails and Injectors: Mount the fuel rails and install the 36 lbs/hr fuel injectors.
• Install Coil Packs: Mount the LS3 coil pack set and connect the wiring.
• Connect Sensors: Install and connect the MAP, IAT, TPS, and oxygen sensors.
• Connect Wiring Harness: Connect the provided wiring harness to all components and the ECU.
• Mount ECU: Secure the ECU in a suitable location.
• Initial Setup: Follow the FiTech setup instructions to configure the ECU and initiate the self-tuning process.
• Fine Tuning: Allow the self-tuning feature to optimize fuel delivery. Verify all connections, and test the system.

BENEFITS OF USING THE FITECH REBEL LS 500HP EFI CATH INTAKE, INTANK MOD, REGU & COIL (78688):

• Improved Engine Performance: Enhances overall efficiency and power output.
• Simplified Installation: Self-tuning capabilities make setup straightforward.
• Reliable Fuel Delivery: Ensures consistent performance across various conditions.
• Compatibility: Supports boosted and nitrous oxide applications for performance tuning.
• Versatility: Can operate on multiple fuel types for diverse applications.

FEATURES:

• Black anodized aluminum intake manifold for durability.
• In-tank fuel pump module included for easy installation.
• Go Fuel regulator for consistent pressure management.
• LS3 coil pack set for reliable ignition performance.
• 92mm throttle body with 1250 cfm airflow for optimal airflow.
• 36 lbs/hr fuel injectors for precise fuel delivery.
• Speed density (MAP-N) metering system for accurate fuel tuning.
• Oxygen sensor included for enhanced fuel management.
• Complete wiring harness and calibration module for straightforward integration.
• Complete sensor package, including IAT, MAP, and TPS for accurate readings.
