FiTech Rebel LS 500HP EFI Cath, 340 LPH Pump & LS3 Coil w/ LED (79788)

Description

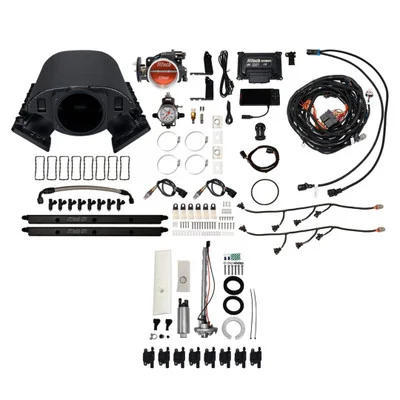

The FiTech Rebel LS 500HP EFI Cath, 340 LPH Pump & LS3 Coil w/ LED (79788) is a comprehensive solution designed to convert LS engines to electronic fuel injection. This kit provides the necessary components for fuel and ignition management, allowing for improved engine performance and tunability. It includes a short cathedral intake manifold, a high-flow in-tank fuel pump, and an LS3-style coil pack, among other essential parts. This system is rated for engines producing up to 500 horsepower and is compatible with power adders like boost and nitrous oxide.

KEY FEATURES AND BENEFITS:

• Complete EFI Conversion Kit: Designed for LS engines.
• High Power Rating: Supports up to 500 horsepower.
• Multi-Port Fuel Injection: Ensures precise fuel delivery.
• Timing Control Compatibility: Allows for advanced ignition tuning.
• Power Adder Support: Compatible with boost and nitrous oxide.
• Comprehensive System: Includes ECU, wiring harness, and calibration module.
• Efficient Fuel Pump: In-tank 340 LPH pump for reliable fuel supply.
• Advanced Sensor Suite: Includes MAP, IAT, TPS, and oxygen sensors.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Timing Control: Yes
• Power Adder Compatibility: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump: In-tank, 340 LPH
• Metering Style: Speed density (MAP-N)
• Intake Manifold: Short cathedral, aluminum
• Throttle Body: 92mm, 1250 CFM
• Injectors: 36 lbs./hr
• Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex
• Engine Compatibility: LS engines with standard deck height, GM LS2 4-bolt throttle body flange

HOW TO USE:

• Disconnect the Battery: Ensure safety by cutting off power to the vehicle.
• Remove Old Components: Take out the existing intake manifold and fuel system.
• Install New Intake Manifold: Secure the FiTech short cathedral intake manifold.
• Mount the Fuel Pump: Place the FiTech in-tank 340 LPH fuel pump inside the fuel tank.
• Attach the Ignition System: Install the FiTech LS3-style coil pack.
• Connect the Wiring Harness: Link the ECU to all necessary sensors, including MAP, IAT, TPS, and oxygen sensors.
• Install Fuel Rails and Injectors: Ensure proper fuel delivery by securing these components.
• Connect Fuel Lines: Attach the fuel pressure regulator and lines to the system.
• Install the Throttle Body: Secure the 92mm throttle body in place.
• Set Up Calibration: Connect the calibration module for EFI tuning.
• Reconnect the Battery: Restore power to the vehicle.
• Configure the ECU: Follow FiTech’s calibration instructions to fine-tune the system.
• Test the System: Start the engine and ensure all components function properly.

BENEFITS OF USING THE FITECH REBEL LS 500HP EFI CATH, 340 LPH PUMP & LS3 COIL W/ LED (79788):

• Enhanced Engine Performance: Provides improved throttle response and power output.
• Optimized Fuel Efficiency: Supports better fuel economy and emissions control.
• Precision Tuning Capability: Allows fine adjustments to fuel and ignition systems.
• Simplified Installation: Complete kit with all necessary components.
• Power Adder Compatibility: Works with boost and nitrous systems.
• Versatile Fuel Compatibility: Supports gasoline, alcohol, methanol, and flex fuels.
• Reliable Fuel Delivery: In-tank 340 LPH fuel pump ensures steady fuel supply.

FEATURES:

• Premium Intake Manifold: Black anodized aluminum for durability and aesthetics.
• High-Flow Fuel Pump: 340 LPH in-tank pump for consistent performance.
• Advanced Ignition System: LS3-style coil pack with LED indicators for monitoring.
• Optimized Throttle Body: 92mm throttle body with 1250 CFM airflow capacity.
• Efficient Fuel Injectors: 36 lbs./hr injectors for proper fuel atomization.
• Comprehensive Wiring Harness: Ensures easy and reliable connections.
• Calibration Module Included: Simplifies ECU tuning and adjustments.
• Speed Density Fuel Metering: Enhances fuel efficiency and engine response.
