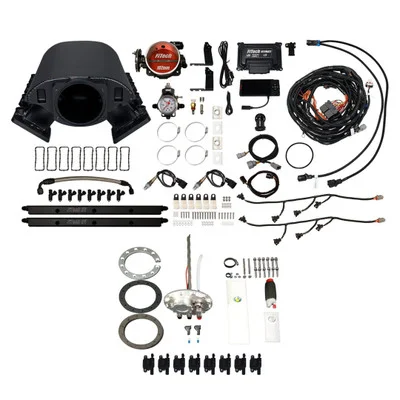

FiTech Rebel 750HP EFI Cath TC, 340LPH RtrnlssMod & Coil w/LED (79891)

Description

The FiTech Rebel 750HP EFI Cath TC, 340LPH RtrnlssMod & Coil w/LED (79891) offers a complete solution for LS engine fuel injection upgrades. This comprehensive kit provides modern electronic fuel injection, precise engine management, and transmission control, designed to enhance performance and drivability. It features a short cathedral intake, high-flow fuel pump, and LS3 style coil packs, ensuring compatibility and optimal function for high-performance applications.

KEY FEATURES AND BENEFITS:

• Supports up to 750 horsepower for high-performance LS engines.
• Multi-port fuel injection for precise fuel delivery.
• Electronic timing control for optimized ignition.
• Power adder compatibility for boost and nitrous applications.
• Comprehensive sensor package for accurate engine management.
• 102mm throttle body for increased airflow.
• 55 lbs./hr fuel injectors to handle high fuel demands.
• 340 LPH in-tank fuel pump for efficient fuel supply.
• Transmission control included for seamless integration.
• Improved throttle response and fuel efficiency.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Timing Control: Yes
• Power Adder Compatibility: Yes (Boost/Nitrous Oxide)
• ECU Included: Yes
• Fuel Pump Included: Yes (In-tank, 340 LPH)
• Transmission Controller: Yes
• Metering Style: Speed density (Map-N)
• Intake Manifold: Short Cathedral, Aluminum (Black Anodized)
• Throttle Body: 102mm, Cast Aluminum (Black)
• Injectors: 55 lbs./hr
• Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex
• Fuel Pressure Regulator: Yes
• Sensors: MAP, IAT, TPS, Oxygen
• Coil Packs: LS3 Style with LED
• Compatibility: LS engine swaps with cathedral-style intake ports

HOW TO USE:

• Installation of Intake Manifold: Mount the short cathedral intake manifold onto the LS engine, ensuring proper gasket sealing.
• Fuel Pump Installation: Install the in-tank 340 LPH fuel pump module into the fuel tank, connecting the necessary fuel lines.
• Injector Installation: Install the 55 lbs./hr injectors into the fuel rails, then mount the rails onto the intake manifold.
• Throttle Body Mounting: Attach the 102mm throttle body to the intake manifold using the GM LS2 4-bolt flange.
• Sensor Connection: Connect the MAP, IAT, TPS, and oxygen sensors to the appropriate locations on the engine and wiring harness.
• Coil Pack Installation: Mount the LS3 style coil packs with LED indicators onto the engine.
• Wiring Harness Connection: Connect the main wiring harness to the ECU and all engine components, ensuring secure connections.
• ECU Configuration: Use the calibration module to program the ECU with the appropriate engine parameters.
• Transmission Controller Setup: Connect and configure the transmission controller for compatible transmissions.
• Fuel Pressure Regulation: Adjust the fuel pressure regulator to the recommended setting.
• Initial Startup and Testing: Start the engine and verify proper operation, checking fuel delivery and sensor readings.

BENEFITS OF USING FITECH REBEL 750HP EFI CATH TC, 340LPH RTRNLSSMOD & COIL W/LED (79891):

• Improved engine performance and throttle response.
• Enhanced fuel efficiency through precise fuel delivery.
• Comprehensive system with all necessary components included.
• Simplified installation for LS engine swaps.
• Flexible fuel compatibility for various applications.
• Reliable engine management with advanced sensor integration.

FEATURES:

• LED-equipped LS3 style coil packs for visual diagnostics.
• In-tank fuel pump with returnless module for streamlined fuel delivery.
• Speed density (Map-N) metering for accurate fuel calculations.
• Aluminum intake manifold with black anodized finish for aesthetics and durability.
• Comprehensive sensor suite for real-time engine data.
• Transmission control included for full engine and drivetrain management.
