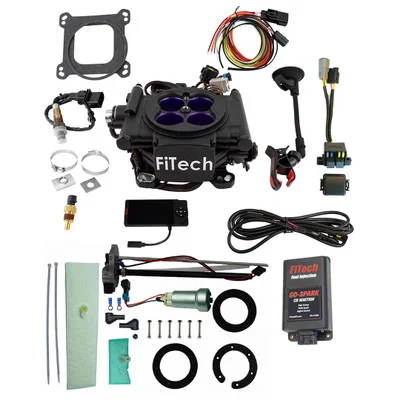

FiTech MeanStreet 800HP Matte Black EFI w/In-Tank Module & CDI (93618)

Description

The FiTech MeanStreet 800HP Matte Black EFI w/ In-Tank Module & CDI (93618) provides a comprehensive electronic fuel injection solution for engines ranging from 200 to 800 horsepower. Designed as a direct replacement for 4-barrel carburetors, this system offers enhanced performance, fuel efficiency, and easier starting. The included Go Fuel In-Tank fuel pump module and Go Spark CDI box complete the package, ensuring a thorough upgrade for older vehicles.

KEY FEATURES AND BENEFITS:

• Self-Tuning Capability: Simplifies the transition from carburetor to EFI for optimal performance.
• Integrated ECU and Fuel Pressure Regulator: Minimizes wiring and streamlines installation, eliminating the need for firewall penetrations.
• Annular Swirl Wet Flow Technology: Ensures optimal fuel atomization, leading to improved power output.
• Flexible Fuel Compatibility: Works with various fuel types, including gasoline, E85, and methanol.
• Handheld Controller: Provides quick and easy adjustments to system settings.

SPECIFICATIONS:

• Throttle Body: 4-barrel square bore, 850 CFM, 43.00mm venturi diameter
• Injectors: 8 flow-matched, 62 lbs/hr
• Fuel Pump: In-tank module, 340 lph
• ECU: Onboard with MAP sensor
• Compatibility: 200-800 HP engines, various fuel types
• Included: Handheld controller, wide-band oxygen sensor, CDI ignition box

HOW TO USE:

• Remove Existing Carburetor: Disconnect the fuel lines, linkages, and any associated components from the existing 4-barrel carburetor.
• Install the FiTech Throttle Body: Mount the FiTech throttle body onto the 4-barrel intake manifold using the provided gasket.
• Install the Fuel Pump: Install the Go Fuel In-Tank fuel pump module into the fuel tank, ensuring proper connections.
• Connect Wiring: Connect the wiring harness to the appropriate sensors, injectors, and ECU.
• Install Oxygen Sensor: Install the wide-band oxygen sensor into the exhaust system, connecting it to the wiring harness.
• Connect CDI Box: Mount the Go Spark CDI box and connect the wiring as instructed.
• Initial Setup: Use the handheld controller to input basic engine parameters and perform the initial setup.
• Start and Self-Tune: Start the engine and allow the system to self-tune, making adjustments as needed via the handheld controller.
• Fine Tuning: After the initial self-learning period, fine-tune the system as needed using the handheld controller.

BENEFITS OF USING THE FITECH MEANSTREET 800HP MATTE BLACK EFI W/ IN-TANK MODULE & CDI (93618):

• Improved Engine Performance: Enhances throttle response and overall power output.
• Enhanced Fuel Efficiency: More efficient than traditional carburetors.
• Easier Engine Starting: Provides smoother idle and reliable starts.
• Simplified Installation: Integrated components reduce installation complexity.

FEATURES:

• Onboard ECU and Fuel Pressure Regulator: Streamlines electrical connections and setup.
• 8 Flow-Matched Injectors: Ensures precise fuel delivery for performance engines.
• Wide-Band Oxygen Sensor: Monitors air-fuel ratio for accurate tuning.
• Go Spark CDI Ignition Box: Improves ignition performance significantly.
• Go Fuel In-Tank Fuel Pump Module: Provides reliable fuel delivery.
• 4-Barrel Square Bore Throttle Body Design: Designed for easy replacement of carburetors.
• Compatible with Nitrous Oxide Power Adders: Enhances performance potential.
• Matte Black Finish: Offers a sleek and modern appearance.
