FiTech Mean Street 800 HP Matte Black EFI w/ In-Tank Module (36308)

Description

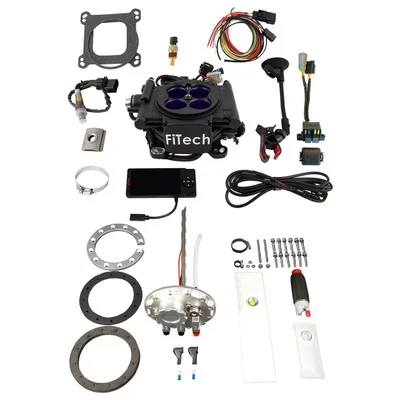

The FiTech Mean Street 800 HP Matte Black EFI w/ In-Tank Module (36308) provides a complete electronic fuel injection solution for high-performance engines. This kit combines an advanced EFI system with a matched in-tank fuel pump module, simplifying installation and ensuring reliable fuel delivery. Designed for engines up to 800 horsepower, it offers improved performance and fuel efficiency compared to traditional carburetors. The self-tuning ECU adapts to engine conditions, making setup and adjustments straightforward.

KEY FEATURES AND BENEFITS:

• Complete EFI System: Includes in-tank fuel pump module for easy installation.
• High Performance: Supports engines up to 800 horsepower.
• Self-Tuning ECU: Facilitates easy setup and automatic adjustments.
• Returnless Fuel System: Simplifies installation and enhances reliability.
• Handheld Controller: Features a touch screen for monitoring and adjustments.
• Improved Efficiency: Enhances fuel efficiency and engine performance.
• Fuel Compatibility: Works with gasoline, methanol, alcohol, and E85 fuels.

SPECIFICATIONS:

• Maximum Horsepower: 800 HP
• Injection Style: Throttle body
• Metering Style: Speed density (Map-N)
• Throttle Body Mounting Flange: 4-barrel square bore
• Airflow Rate: 850 cfm
• Injector Size: 62 lbs./hr
• Fuel Pump Style: In-tank
• Fuel Pump Flow: 340 LPH
• Fuel Pressure Regulator: Internal
• Compatibility: 4, 6, 8 cylinder engines

HOW TO USE:

1. Install the in-tank fuel pump module into your fuel cell or custom tank.
2. Mount the throttle body to your 4-barrel intake manifold.
3. Connect the wiring harness to the appropriate sensors and power sources.
4. Install the oxygen sensor in the exhaust system.
5. Connect the handheld controller and follow the on-screen instructions for initial setup.
6. Start the engine and allow the self-tuning ECU to adjust fuel delivery.
7. Use the handheld controller to monitor engine parameters and make fine adjustments as needed.

BENEFITS OF USING THE FITECH MEAN STREET 800 HP MATTE BLACK EFI W/ IN-TANK MODULE (36308):

• Consistent Performance: Ensures reliable engine performance across varying conditions.
• Reduced Fuel Consumption: More efficient than traditional carburetors.
• Simplified Startup: Provides easier engine startup and improved idle quality.
• Elimination of Tuning Issues: Removes the complications associated with carburetor tuning.
• Enhanced Throttle Response: Improves overall drivability and responsiveness.
• Reliable Fuel Delivery: Ensures consistent performance with the included in-tank pump.

FEATURES:

• Internal MAP Sensor: For accurate air/fuel ratio adjustments.
• Adjustable Fan Control: Switches to manage engine temperature effectively.
• Secure Connections: Uses -06 AN fuel inlet fittings for reliable connections.
• Reliable Sensors: Incorporates GM-type sensors and Bosch 4.2 wideband oxygen sensor.
• Fuel Atomization: Features wet flow swirl spray annular discharge for complete fuel atomization.
• Diagnostic Readouts: OBD II fault code readouts for easy diagnostics.
• Nitrous Compatibility: Capable of using nitrous oxide as a power adder.
• Fuel Fill: 2-inch fuel fill built into the fuel pump module.
