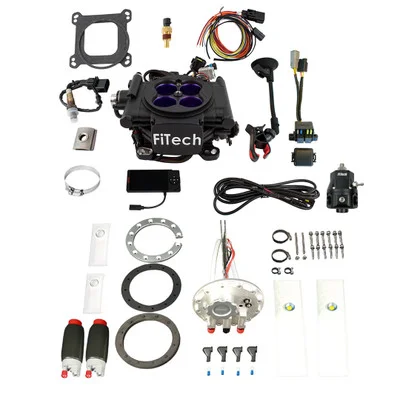

FiTech Mean Street 800 HP Black EFI w/Dual Pump In-tank Module (36408)

Description

The FiTech Mean Street 800 HP Black EFI w/Dual Pump In-tank Module (36408) is a throttle body injection system designed to convert carbureted engines to electronic fuel injection. Rated for up to 800 horsepower, this kit provides improved performance and drivability. It features an 850 CFM throttle body, 62 lb/hr injectors, and an included ECU. The system is compatible with various fuels, including gasoline, alcohol, and methanol.

KEY FEATURES AND BENEFITS:

• High performance: Achieve up to 800 horsepower with this EFI system.
• Improved efficiency: Enhances fuel efficiency and engine responsiveness compared to carbureted setups.
• Precise tuning: The included ECU and calibration module allow for accurate fuel tuning.
• Easy installation: Designed for 4-barrel square bore intake manifolds.
• Fuel flexibility: Compatibility with various fuel types for different engine builds.
• Complete fuel delivery: In-tank fuel pump and fuel pressure regulator included.

SPECIFICATIONS:

• Maximum horsepower: 800 HP
• Injection style: Throttle body
• Metering style: Speed density (MAP-N)
• Airflow rate: 850 CFM
• Injector size: 62 lbs./hr.
• Throttle body mounting flange: 4-barrel square bore
• Fuel compatibility: Gasoline, Alcohol, Methanol, Flex
• ECU included: Yes
• Fuel pump style: In-tank fuel pump

HOW TO USE:

• Preparation: Remove the existing carburetor and ensure the intake manifold surface is clean.
• Installation: Mount the FiTech 36408 throttle body onto the 4-barrel intake manifold.
• Fuel system: Install the in-tank fuel pump and connect the fuel lines to the throttle body.
• Wiring: Connect the wiring harness to the ECU and the necessary engine sensors (MAP, IAT, TPS, O2).
• Sensor installation: Install the provided sensors into the appropriate locations.
• ECU setup: Connect the calibration module and follow the instructions to configure the ECU for your engine.
• Initial start: Verify all connections and start the engine. Adjust the calibration as needed for optimal performance.
• Fine tuning: Drive the vehicle and use the calibration module to fine-tune fuel parameters.

BENEFITS OF USING THE FITECH MEAN STREET 800 HP BLACK EFI W/DUAL PUMP IN-TANK MODULE (36408):

• Consistent performance: Reliable engine performance across varying conditions.
• Reduced cold-start issues: Improved idle stability for better drivability.
• Enhanced throttle response: Provides immediate power delivery.
• Simplified tuning: Easier adjustments compared to traditional carburetors.
• Modernized control: Advanced engine management for improved efficiency.

FEATURES:

• Matte black cast aluminum throttle body: Durable construction with a sleek look.
• Integrated 43mm venturi design: Optimizes airflow for enhanced performance.
• Comprehensive sensor kit: Includes all necessary sensors for accurate engine management.
• Pre-terminated wiring harness: Simplifies installation process.
• On-board ECU: Allows for easy tuning and adjustments.
• In-tank fuel pump: Ensures reliable fuel delivery.
• Fuel pressure regulator: Included for consistent fuel pressure.
• Calibration module: Facilitates real-time tuning adjustments.
