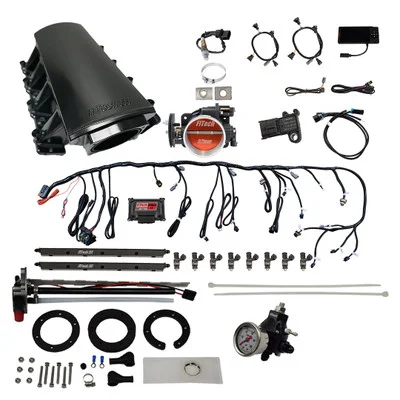

FiTech LS EFI Master Kit 70015 500HP w/50015 In-Tank Module (76215)

Description

The FiTech LS EFI Master Kit 70015 500HP w/50015 In-Tank Module (76215) is a complete electronic fuel injection solution designed for LS engines. This kit provides precise fuel and spark control, enhancing performance and efficiency. It includes all necessary components for a seamless installation, making it ideal for LS engine swaps and upgrades.

KEY FEATURES AND BENEFITS:

• Comprehensive Package: Includes ECU, wiring harness, sensors, fuel rails, injectors, a 92mm throttle body, and an aluminum intake manifold.
• Go Fuel In-Tank Module: Provides a complete fuel delivery solution with a 340 lph fuel pump.
• Self-Learning ECU: Simplifies tuning processes for optimal performance.
• Multi-Port Injection: Ensures optimal fuel distribution for improved engine efficiency.
• Power Adders Compatibility: Rated for up to 500 horsepower, compatible with boost and nitrous oxide.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Timing Control: Yes
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump: In-tank, 340 lph
• Intake Manifold: Aluminum, black anodized
• Throttle Body: 92mm, black anodized
• Injectors: 36 lbs/hr
• Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)

HOW TO USE:

• Install the in-tank module: Place the Go Fuel In-Tank Module into the fuel tank.
• Mount the intake components: Attach the intake manifold and throttle body onto the LS engine.
• Connect the injectors: Install the fuel rails and connect the injectors.
• Install the sensors: Attach the MAP, IAT, TPS, and oxygen sensor.
• Route the wiring harness: Connect it to the ECU and engine components.
• Connect fuel lines: Route the lines from the in-tank module to the fuel rails.
• Mount the ECU: Attach the ECU and connect the 4.5-inch touch screen display.
• Program the ECU: Use the touch screen to follow the self-learning process.
• Start the engine: Verify all connections and start the engine.
• Fine-tune settings: Adjust the system as needed using the display.

BENEFITS OF USING THE FITECH LS EFI MASTER KIT 70015 500HP W/50015 IN-TANK MODULE (76215):

• Improved engine performance and throttle response.
• Enhanced fuel efficiency.
• Simplified tuning with the self-learning ECU.
• Complete kit provides all necessary components for installation.
• Reliable fuel delivery with the included in-tank module.
• Compatibility with power adders for increased performance.
• Modern fuel injection technology suitable for classic vehicles or engine swaps.

FEATURES:

• Durable Construction: Black anodized aluminum for both durability and aesthetic appeal.
• High-Performance Throttle Body: 92mm with 1250 cfm airflow capacity.
• Precise Fuel Delivery: 36 lbs/hr injectors ensure accurate fuel flow.
• User-Friendly Display: 4.5-inch touch screen for easy programming and data logging.
• Crank and Cam Compatibility: Supports 24x and 58x sensors.
• Fuel Type Flexibility: Compatible with alcohol, gasoline, methanol, and flex fuel.
• Secure Connections: AN fittings and fuel crossover included.
• Programmable Fan Control: Enables effective cooling management.
• Accurate Monitoring: Bosch wideband-controlled oxygen sensor for optimal air-fuel ratios.
• Stainless Steel Bung: Durable oxygen sensor bung included for installation.
