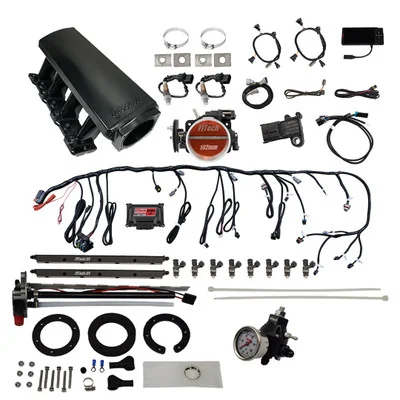

FiTech LS EFI Master Kit 70009 750HP w/50015 In-Tank Module (76209)

Description

The FiTech LS EFI Master Kit 70009 750HP w/50015 In-Tank Module (76209) provides a complete electronic fuel injection solution for LS engines. This kit enhances engine performance with multi-port fuel injection, a 102mm throttle body, and a self-tuning ECU. Designed for up to 750 horsepower, it includes an in-tank fuel module and transmission controller, simplifying installation and optimizing fuel delivery.

KEY FEATURES AND BENEFITS:

• Comprehensive Upgrade: Enables improved horsepower and fuel efficiency for LS engines.
• Self-Tuning ECU: Simplifies setup and adjusts to engine requirements automatically.
• In-Tank Fuel Module: Provides a complete fuel delivery solution.
• Transmission Controller: Enhances control for GM 4L60, 4L65, 4L70, and 4L80 transmissions.
• Fuel Flexibility: Compatible with various fuels and power adders for diverse applications.
• Maximized Airflow: The 102mm throttle body and high-flow intake manifold ensure optimal performance.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Throttle Body: 102mm
• Injectors: 55 lbs./hr
• Fuel Pump: In-tank, 340 lph
• ECU: Self-tuning, user-tunable
• Transmission Control: GM 4L60, 4L65, 4L70, 4L80
• Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex
• Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)

HOW TO USE:

• Install the in-tank fuel module: Place it in the fuel tank.
• Mount the intake manifold and throttle body: Attach them to the LS engine.
• Connect the fuel lines: Use the provided AN fittings for secure connections.
• Install the injectors: Insert them into the fuel rails.
• Connect the wiring harness: Attach it to the ECU and engine sensors (MAP, IAT, TPS, oxygen).
• Install the oxygen sensor: Place it in the exhaust system.
• Connect the transmission controller: Attach it to the transmission.
• Connect the hand-held controller: Link it to the ECU.
• Follow the on-screen prompts: Use the hand-held controller to set up the system.
• Start the engine: Allow the self-tuning ECU to adjust fuel and timing settings.
• Fine tune if needed: Make adjustments using the hand-held controller.

BENEFITS OF USING THE FITECH LS EFI MASTER KIT 70009 750HP W/50015 IN-TANK MODULE (76209):

• Enhanced engine performance and horsepower.
• Improved fuel efficiency for better economy.
• Simplified installation with self-tuning capabilities.
• Complete kit includes fuel system and transmission control.
• Flexibility for various fuel types and power adders.
• Precise fuel delivery through multi-port injection.

FEATURES:

• Durable Construction: Black anodized aluminum components for corrosion resistance.
• High-Flow Throttle Body: Cable-operated design for enhanced airflow.
• Accurate Monitoring: Bosch wideband-controlled oxygen sensor included.
• Compatibility: Works with both car and truck ignition coils.
• Crank and Cam Compatibility: Supports 24X and 58X signals.
• Programmable Outputs: Includes fan control outputs for versatility.
• Data Logging: Enabled through the hand-held controller.
• User-Friendly Controller: Touch screen hand-held controller with suction cup mount.
• Parallel Port Design: Facilitates easy fuel line routing on the fuel module.
• Airflow Rate: Capable of 1500 cfm for optimal performance.
