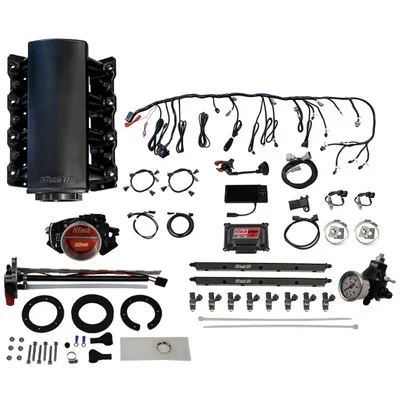

FiTech LS EFI Master Kit 70004 750HP w/50015 In-Tank Module (76204)

Description

The FiTech LS EFI Master Kit 70004 750HP w/50015 In-Tank Module (76204) provides a comprehensive upgrade for LS engine performance. This kit replaces traditional setups with modern fuel injection technology, including an in-tank fuel module for ease of installation. Designed for high horsepower applications, this system enhances engine operation and fuel efficiency.

KEY FEATURES AND BENEFITS:

• 750 HP Maximum: Specifically designed for high-performance LS engines.
• Complete Kit: Includes ECU, wiring, fuel pump, injectors, throttle body, and intake manifold.
• Self-Learning ECU: Simplifies setup with automatic tuning capabilities.
• Transmission Control: Compatible with select GM 4-speed automatic transmissions.
• In-Tank Fuel Module: Streamlines fuel system installation for convenience.
• Sequential Fuel and Spark: Provides precise engine control for optimal performance.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
• Throttle Body Size: 102mm
• Injector Size: 55 lbs./hr.
• Fuel Pump Flow: 340 lph
• ECU: Included with self-learning function
• Intake Style: Single plane
• Intake Material: Aluminum
• Transmission Control Compatibility: GM 4L60, 4L65, 4L70, 4L80

HOW TO USE:

• Prepare Vehicle: Disconnect the battery and remove the existing carburetor and intake manifold.
• Install Intake Manifold: Mount the FiTech intake manifold onto the LS engine.
• Mount Throttle Body: Attach the 102mm throttle body to the intake manifold.
• Install Injectors and Fuel Rails: Secure the injectors and fuel rails into place.
• Install Fuel System: Place the in-tank fuel module in the gas tank and connect the fuel lines.
• Connect Wiring Harness: Attach the provided wiring harness to the engine sensors and ECU.
• Mount ECU: Secure the ECU in a suitable location within the vehicle.
• Connect Display: Connect the 4.5-inch touch screen display for monitoring.
• Initial Startup: Follow the ECU display prompts for initial setup and engine start.
• System Tuning: Allow the self-learning ECU time to tune the system, or manually tune as necessary.

BENEFITS OF USING THE FITECH LS EFI MASTER KIT 70004 750HP W/50015 IN-TANK MODULE (76204):

• Improved engine performance and enhanced throttle response.
• Easy tuning with the self-learning ECU and touch screen display.
• Increased engine control and adjustability for better performance.
• Modernizes older vehicles by integrating current fuel injection technology.

FEATURES:

• Durable Construction: Black anodized aluminum components for corrosion resistance.
• High-Flow Design: Features a cable-operated throttle body for efficient airflow.
• Accurate Monitoring: Includes a Bosch wideband-controlled oxygen sensor for precise readings.
• Compatibility: Works with both car and truck coils for versatile applications.
• Secure Connections: AN fittings and fuel crossover ensure reliable plumbing.
• Custom Compatibility: Designed to work with custom camshafts.
• Sensor Compatibility: Supports both 24X and 58X crank and cam signals.
• Programmable Controller: Touch screen handheld controller with data logging features.
• Convenient Display: Includes a suction cup mounting bracket for easy access to the display.
