FiTech LS EFI 750HP w/LS3 Intake/Trans Control/Pump/Regulator (76114)

Description

The FiTech LS EFI 750HP w/LS3 Intake/Trans Control/Pump/Regulator (76114) is engineered to transform your LS engine’s performance. This comprehensive kit provides all the necessary components for a seamless upgrade to electronic fuel injection, delivering enhanced power, drivability, and control.

KEY FEATURES AND BENEFITS:

• High Power Rating: This system is rated for up to 750 horsepower.

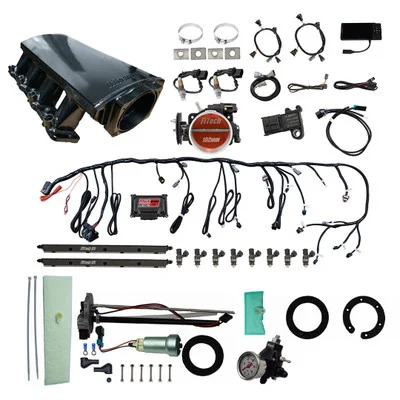

• Complete Kit: Includes a short LS3 port intake manifold, a 102mm billet throttle body, and high-volume fuel rails.
• Self-Learning ECU: Optimizes fuel delivery for improved performance.
• Programmable Touch Screen Controller: Allows for precise tuning and data logging.
• Reliable Fuel Supply: Comes with an in-tank 440 LPH fuel pump module and “Go Fuel” regulator master kit.
• Transmission Control Functionality: Supports 4L60, 4L65, 4L70, and 4L80 GM transmissions.
• Boost Compatibility: The 3-bar MAP sensor accommodates boost detection for boosted applications.
• Signal Compatibility: Designed for both 24X and 58X crank and cam signals and custom camshafts.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Timing Control: Yes
• Power Adder Compatibility: Boost/Nitrous oxide
• Fuel Pump: In-tank 440 LPH
• Transmission Control: Yes (4L60, 4L65, 4L70, 4L80)
• Metering Style: Speed density (Map-N)
• Intake Material: Aluminum
• Throttle Body: 102mm, GM LS2 4-bolt
• Injectors: 55 lbs./hr.
• Compatibility: 24X and 58X crank/cam signals, car/truck coils, custom camshafts.

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing intake manifold and fuel system.
• Fuel System Installation: Install the in-tank fuel pump module within the fuel tank and connect the fuel lines to the “Go Fuel” regulator.
• Intake and Throttle Body Installation: Mount the LS3 port intake manifold and 102mm throttle body onto the engine.
• Injector and Fuel Rail Installation: Attach the 55 lbs./hr. injectors and high-volume fuel rails.
• Wiring Harness Connection: Connect the plug-and-play wiring harness to the engine sensors, injectors, and ECU.
• Sensor Installation: Install the 3-bar MAP sensor, oxygen sensors, and other required sensors.
• ECU and Controller Setup: Mount the ECU and connect the touch screen hand-held controller.
• Initial Tuning: Use the self-learning ECU and touch screen controller to perform initial tuning and adjustments.
• Transmission Control Setup: If used, set up the transmission control through the touch screen controller.
• Testing and Adjustment: Start the engine and fine-tune the system as needed, using the data logging features.

BENEFITS OF USING THE FITECH LS EFI 750HP W/LS3 INTAKE/TRANS CONTROL/PUMP/REGULATOR (76114):

• Improved Performance: Significant enhancement in engine performance and throttle response.
• Fuel Efficiency: Enhanced fuel efficiency and optimized air-fuel ratios.
• Simplified Installation: Comprehensive kit with plug-and-play wiring for easy setup.
• Precise Tuning: Data logging capabilities for optimal performance adjustments.
• Reliable Fuel Delivery: Included in-tank fuel pump module ensures consistent fuel supply.

FEATURES:

• Corrosion Resistance: Black anodized aluminum components for durability.
• Accurate Readings: Dual Bosch wideband oxygen sensors for precise air-fuel ratio readings.
• Knock Sensor Control: Enhances engine protection against knocking.
• Stainless Steel Bung: Oxygen sensor bung for durability.
• High-Flow Throttle Body: Cable-operated throttle body for improved airflow.
• Hand-Held Controller: Suction cup mounting bracket for convenient positioning.
• Vacuum Requirement: Designed for applications that make at least 6 inches of vacuum at idle.
