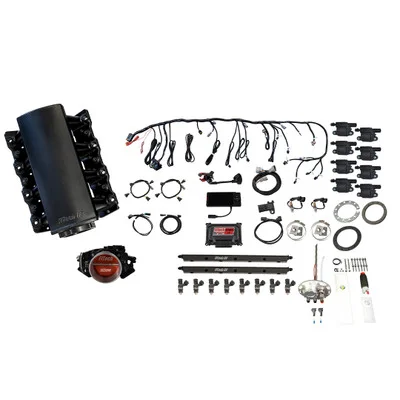

FiTech LS 750HP EFI Short Intake TC, Returnless Module & Coil (78804)

Description

The FiTech LS 750HP EFI Short Intake TC, Returnless Module & Coil (78804) simplifies LS engine conversions by providing a comprehensive solution for upgrading from carbureted to electronic fuel injection. Designed for high-performance applications, this kit supports up to 750 horsepower and includes all necessary components for a seamless installation.

KEY FEATURES AND BENEFITS:

• Supports up to 750 horsepower, ideal for high-performance LS engine builds.
• Multi-port fuel injection for improved power and efficiency.
• Includes a 102mm throttle body and 55 lb./hr injectors for optimal fuel delivery.
• Self-learning ECU for simplified tuning and optimal performance.
• Offers timing and transmission control capabilities.
• Compatible with boosted and nitrous oxide applications.
• Provides multiple fuel delivery options, including in-tank and external fuel pump modules.
• Features a color touchscreen display for easy user interface.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Throttle Body: 102mm, 1450 cfm
• Injectors: 55 lbs./hr
• Fuel Pump: In-tank or external options
• ECU: Included
• Transmission Control: Yes (in select models)
• Intake Material: Aluminum
• Fuel Type: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carbureted intake and fuel system.
• Intake Installation: Install the FiTech intake manifold onto the LS engine, ensuring proper gasket placement.
• Fuel System Setup: Choose and install the appropriate fuel pump module (in-tank or external) and connect fuel lines.
• Injector and Throttle Body Installation: Mount the 55 lb./hr injectors and the 102mm throttle body onto the intake.
• Wiring Harness Connection: Connect the FiTech wiring harness to the engine sensors, injectors, and ECU.
• ECU and Sensor Installation: Mount the ECU and connect the MAP, IAT, TPS, and oxygen sensors.
• Fuel Pressure Regulation: Install and adjust the fuel pressure regulator.
• Initial Setup: Connect the touchscreen display and follow the on-screen prompts for initial setup and calibration.
• Testing and Tuning: Start the engine and monitor performance. Use the self-learning feature for initial tuning, and fine-tune as needed.

BENEFITS OF USING THE FITECH LS 750HP EFI SHORT INTAKE TC, RETURNLESS MODULE & COIL (78804):

• Improved engine performance and power delivery.
• Enhanced fuel efficiency and drivability.
• Simplified LS engine conversion process.
• User-friendly interface for easy tuning and adjustments.
• Reliable and consistent performance in various operating conditions.

FEATURES:

• Fabricated 3mm thick aluminum sheet metal intake.
• Cast, cable activated billet aluminum throttle body.
• High volume billet fuel rails.
• Sequential fuel and spark control.
• Knock sensor control.
• 3-Bar MAP sensor for boosted applications.
• Two programmable electric fan outputs.
• LS3 style coil packs included.
• Choice of fuel delivery systems.
• Connects to 24x and 58x cam sensors.
