FiTech LS 750HP EFI Long Returnless Module Kit w/Coils & LED (79809)

Description

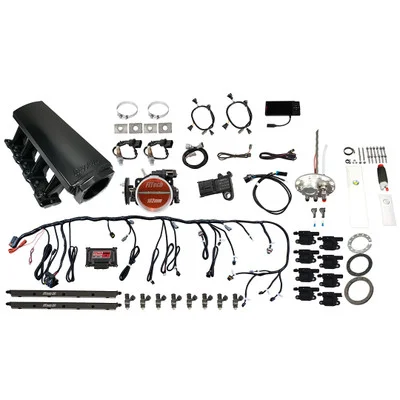

The FiTech LS 750HP EFI Long Returnless Module Kit w/Coils & LED (79809) provides a complete electronic fuel injection solution for LS engines. This kit is designed to streamline LS engine swaps and enhance performance by offering precise fuel and spark control. It includes a fabricated aluminum intake manifold, a 102mm throttle body, an ECU, injectors, and a fuel pump module, among other essential components.

KEY FEATURES AND BENEFITS:

• The FiTech 79809 system supports up to 750 horsepower, making it suitable for high-performance LS engine builds.
• Self-learning technology simplifies tuning by automatically adjusting air/fuel ratios.
• Includes an in-tank returnless fuel pump module, ensuring reliable fuel delivery.
• The 4.5-inch touchscreen controller allows for easy monitoring and adjustments.
• Offers sequential fuel and spark control, knock sensor control, and a 3-Bar MAP sensor for boosted applications.

SPECIFICATIONS:

• Fuel Injection Style: Multi-port
• Maximum Horsepower: 750
• Throttle Body: 102mm billet aluminum
• Injectors: 55 lbs/hr
• Fuel Pump: In-tank returnless module
• ECU: Included
• Display: 4.5-inch touchscreen
• Intake Material: Aluminum
• Fuel Rails: Included
• MAP Sensor: 3-Bar

HOW TO USE:

• Installation: Begin by installing the intake manifold onto the LS engine, ensuring proper gasket sealing.
• Fuel System Setup: Install the in-tank fuel pump module within the fuel tank, connecting the necessary fuel lines.
• Throttle Body and Injector Installation: Mount the 102mm throttle body and install the 55 lbs/hr injectors into the fuel rails.
• Wiring Harness Connection: Connect the wiring harness to the ECU and all sensors (MAP, IAT, TPS, oxygen).
• ECU Setup: Mount the ECU and connect the handheld touchscreen controller.
• Sensor Connections: Attach all the sensors like the O2 Sensor, MAP Sensor, IAT Sensor, TPS Sensor, and IAC motor.
• Ignition Coil Installation: Mount the 8 LS3 style ignition coils and connect them.
• Initial Power-Up: Power on the system and use the touchscreen controller to input basic engine parameters.
• Self-Learning Process: Start the engine and allow the self-learning feature to adjust the air/fuel ratios.
• Fine-Tuning: Use the touchscreen controller to fine-tune settings as needed.

BENEFITS OF USING THE FITECH LS 750HP EFI LONG RETURNLESS MODULE KIT W/COILS & LED (79809):

• Simplifies the complexity of LS engine swaps by providing a complete EFI solution.
• Self-learning feature reduces the need for extensive tuning, saving time and effort.
• Supports high horsepower applications, making it suitable for performance builds.
• In-tank fuel pump module ensures reliable fuel delivery.
• Touchscreen controller allows for easy monitoring and adjustments.
• Complete kit removes the need to source individual components.

FEATURES:

• Fabricated 3mm thick aluminum sheet metal intake manifold with TIG welds.
• Cast, cable-activated billet aluminum 102mm throttle body.
• Handheld controller with color touch screen and windshield mount.
• Sequential fuel and spark control with individual cylinder trim.
• Connects to 24x and 58x cam sensors.
• Knock sensor control connects to factory sensors.
• 3-Bar MAP sensor for boosted applications up to 30 psi.
• Tach output driver works with most tachometers.
• Two programmable electric fan outputs.
• Supplied with WBO2 sensors.
• Custom wiring harness for a direct plug-in installation.
• In-tank fuel pump returnless module with 2 in. fill.
• 8 LS3 style ignition coils with LED.
