FiTech LS 750 HP EFI Long Intake w/ Pump & LS3 Style Coil (78708)

Description

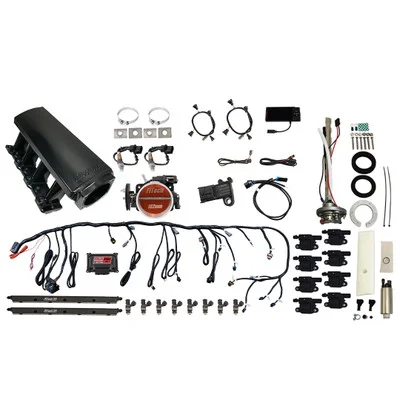

The FiTech LS 750 HP EFI Long Intake w/ Pump & LS3 Style Coil (78708) provides a comprehensive solution for LS engine swaps. This kit simplifies the process by including all essential components for fuel delivery and ignition, designed to support up to 750 horsepower. It features a long runner cathedral intake manifold, a high-flow in-tank fuel pump, and LS3-style ignition coils, ensuring optimal performance and reliability. The system’s self-learning ECU and touchscreen controller allow for easy tuning and monitoring, making it suitable for both street and performance applications.

KEY FEATURES AND BENEFITS:

• Supports up to 750 horsepower, suitable for high-performance LS engines.
• Complete master kit includes intake manifold, fuel system, and ignition components.
• Long runner cathedral intake manifold for improved airflow.
• 340 LPH in-tank regulated fuel pump ensures consistent fuel delivery.
• LS3-style ignition coils for enhanced spark performance.
• Self-learning ECU maintains optimal air/fuel ratios.
• Handheld touchscreen controller for easy tuning and monitoring.
• Sequential fuel and spark control with individual cylinder trim.
• 3-Bar MAP sensor for boosted applications.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Intake Material: Aluminum
• Throttle Body Size: 102mm
• Injector Size: 55 lbs/hr
• Fuel Pump: 340 LPH in-tank regulated
• ECU: Included
• Timing Control: Yes
• Power Adder Compatible: Yes (Boost/Nitrous)
• Metering Style: Speed density (Map-N)

HOW TO USE:

• Installation: Begin by installing the intake manifold and fuel rails onto the LS engine.
• Fuel System Setup: Install the in-tank fuel pump module into the fuel tank and connect the fuel lines.
• Ignition Setup: Mount the LS3-style ignition coils and connect the wiring harness.
• Wiring: Connect the main wiring harness to the ECU and all necessary sensors (MAP, IAT, TPS, O2).
• ECU Connection: Connect the handheld touchscreen controller to the ECU.
• Initial Setup: Power on the system and use the touchscreen controller to input basic engine parameters.
• Self-Learning: Allow the ECU to self-learn and adjust fuel/spark settings over time.
• Tuning: Fine-tune the system using the touchscreen controller as needed.

BENEFITS OF USING THE FITECH LS 750 HP EFI LONG INTAKE W/ PUMP & LS3 STYLE COIL (78708):

• Simplified LS engine swaps with a complete, integrated system.
• Improved engine performance and efficiency.
• Reliable fuel delivery and ignition.
• Easy tuning and monitoring through the touchscreen controller.
• Compatibility with boosted applications.
• Reduced time to complete an LS swap.

FEATURES:

• Fabricated 3mm thick aluminum sheet metal intake manifold.
• Cast, cable activated billet aluminum 102mm throttle body.
• High volume billet fuel rails.
• Connects to 24x and 58x cam sensors.
• Knock sensor control connects to factory sensors.
• Two programmable electric fan outputs.
• Supplied with WBO2 sensors.
• Custom wiring harness for a direct plug-in installation.
• Ability to use Alcohol, Methanol, and Gasoline.
• Go fuel tight fit fuel regulator compatible.
