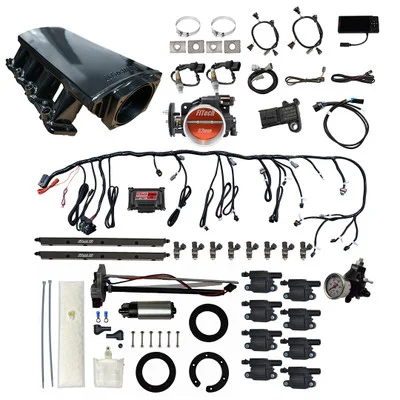

FiTech LS 500HP EFI LS3 Intake Kit w/ Trans Control & LS3 Coil (78412)

Description

The FiTech LS 500HP EFI LS3 Intake Kit w/ Trans Control & LS3 Coil (78412) provides a comprehensive solution for upgrading your LS engine to electronic fuel injection. This kit offers a complete system, including intake manifold, fuel delivery, ECU, and transmission control, designed for engines producing up to 500 horsepower. It simplifies the process of LS engine swaps by providing a self-tuning system that adapts to your engine’s needs.

KEY FEATURES AND BENEFITS:

• This kit features a self-learning ECU that adjusts fuel and spark settings for optimal performance.
• Includes transmission control for GM 4L60, 4L65, 4L80, and 4L85 transmissions, allowing for precise shift point and firmness adjustments.
• The system supports up to 500 horsepower and includes an intake manifold with a 92mm throttle body, 36 lbs/hr injectors, and an in-tank fuel pump module.
• The kit also includes all necessary sensors and a touchscreen controller for easy setup and monitoring.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Timing Control: Yes
• Power Adder Compatible: Boost/Nitrous oxide
• ECU Included: Yes
• Fuel Pump: In-tank
• Transmission Controller: Yes
• Metering Style: Speed density (MAP-N)
• Intake Material: Aluminum
• Throttle Body: 92mm, GM LS2 4-bolt
• Injector Size: 36 lbs/hr
• Fuel Type: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Installation: Install the intake manifold, throttle body, and fuel rails onto the LS engine.
• Fuel System Setup: Install the in-tank fuel pump module and connect the fuel lines.
• Wiring: Connect the wiring harness to the engine sensors, injectors, and ECU.
• Transmission Control (if applicable): Connect the transmission control wiring to the transmission.
• Sensor Connections: Connect all sensors (MAP, IAT, TPS, O2) to the wiring harness.
• ECU Setup: Connect the touchscreen controller and follow the on-screen instructions for initial setup.
• Initial Start-up: Start the engine and allow the self-learning ECU to begin adjusting fuel and spark settings.
• Fine-Tuning: Monitor engine parameters using the touchscreen controller and make adjustments as needed.

BENEFITS OF USING THE FITECH LS 500HP EFI LS3 INTAKE KIT W/ TRANS CONTROL & LS3 COIL (78412):

• Simplified LS engine swaps with a complete EFI system.
• Improved engine performance and drivability.
• Precise fuel and spark control with the self-learning ECU.
• Enhanced transmission control for optimized shifting.
• Easy setup and monitoring with the touchscreen controller.
• Reliable fuel delivery with the included in-tank fuel pump.

FEATURES:

• Fabricated 3mm thick aluminum sheet metal intake manifold.
• Cast, cable activated billet aluminum 92mm throttle body.
• Handheld controller with color touch screen and cable.
• LS ECU with self-learning technology.
• 36 lb./hr. injectors and high volume billet fuel rails.
• Sequential fuel and spark control with individual cylinder trim.
• Connects to 24x and 58x cam sensors.
• Knock sensor control connects to factory sensors.
• 3-Bar MAP sensor for boosted applications up to 30 psi.
• Tach output driver works with most tachometers.
• Two programmable electric fan outputs.
• Supplied with WBO2 sensors.
• Custom wiring harness for a direct plug-in installation.
• LS3 style coil packs included.
