FiTech LS 500 HP EFI Short LS7 w/ 600 HP Module & Regulator (76415)

Description

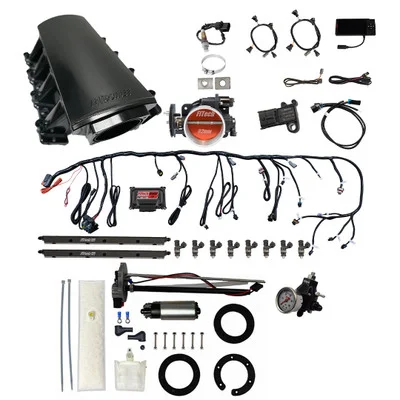

The FiTech LS 500 HP EFI Short LS7 w/ 600 HP Module & Regulator (76415) is a comprehensive Electronic Fuel Injection (EFI) system designed to upgrade LS engines, providing improved performance and efficiency. This kit delivers a complete solution for converting from a carburetor to modern EFI, supporting up to 500 horsepower. It includes an LS7 short port intake manifold, a high-capacity in-tank fuel pump, and a fuel pressure regulator master kit, ensuring all necessary components are included for a straightforward installation.

KEY FEATURES AND BENEFITS:

• Power Support: Supports up to 500 horsepower, allowing for significant power gains.
• Multi-Port Fuel Injection: Ensures precise fuel delivery and improved engine response.
• Integrated Timing Control: Optimizes ignition performance for enhanced efficiency.
• Power Adder Compatibility: Works with boost and nitrous oxide applications.
• Complete ECU: Manages both fuel and ignition for optimal performance.
• Reliable Fuel Delivery: Includes an in-tank fuel pump and fuel pressure regulator.
• Enhanced Airflow: LS7 short port intake manifold designed for improved airflow.
• Versatile Fuel Compatibility: Supports gasoline, alcohol, methanol, and flex fuel.
• Speed Density Metering: Provides accurate fuel calculations for optimal performance.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Timing Control: Yes
• Power Adder Compatibility: Boost/Nitrous oxide
• ECU Included: Yes
• Fuel Pump: In-tank
• Intake Manifold: LS7 short port
• Metering Style: Speed density (MAP-N)
• Throttle Body: 92mm, 1250 CFM
• Injectors: 36 lbs/hr
• Fuel Compatibility: Gasoline, Alcohol, Methanol, Flex

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and intake manifold.
• Fuel Pump Installation: Install the in-tank fuel pump according to the included instructions.
• Intake Manifold Installation: Mount the LS7 short port intake manifold onto the engine.
• Throttle Body and Sensor Installation: Attach the throttle body, MAP sensor, IAT sensor, and TPS sensor.
• Injector Installation: Install the fuel injectors into the intake manifold.
• Wiring Harness Connection: Connect the wiring harness to the ECU and all sensors.
• Fuel Pressure Regulator Setup: Install and adjust the fuel pressure regulator.
• Oxygen Sensor Installation: Install the oxygen sensor in the exhaust system.
• ECU Programming: Use the calibration module to program the ECU with the appropriate settings.
• Final Checks: Verify all connections and fuel lines, then reconnect the battery and start the engine.

BENEFITS OF USING THE FITEC LS 500 HP EFI SHORT LS7 W/ 600 HP MODULE & REGULATOR (76415):

• Improved Engine Performance: Increases horsepower and throttle response.
• Enhanced Fuel Efficiency: Achieved through precise fuel and ignition control.
• Simplified Installation: Easier transition from traditional carburetor setups.
• Flexible Fuel Compatibility: Provides options for various fuel types.
• Adaptability: Capable of handling boosted and nitrous applications.

FEATURES:

• Durable Intake Manifold: Black anodized aluminum construction.
• Throttle Body: Cast aluminum with a black finish, 92mm bore.
• Complete Wiring Harness: Includes all necessary sensors.
• Calibration Module: Makes ECU tuning straightforward.
• In-Tank Fuel Pump: Rated for 600 HP capacity.
• Fuel Pressure Regulator Master Kit: For precise fuel management.
• High Flow Capacity: 1250 CFM airflow rating with 36 lbs/hr injectors.
