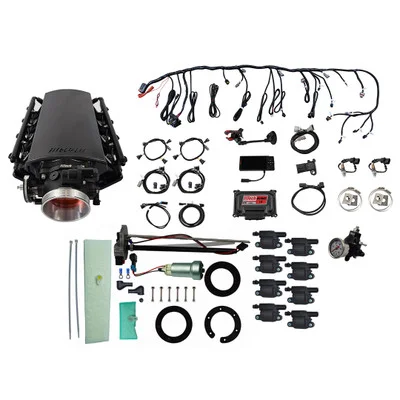

FiTech LS 1000 HP EFI LS3 Intake Master Kit w/ Trans Control (78635)

Description

The FiTech LS 1000 HP EFI LS3 Intake Master Kit w/ Trans Control (78635) provides a comprehensive solution for high-performance LS engine swaps. This kit offers advanced fuel injection technology, designed to support engines up to 1,000 horsepower. It includes all necessary components for a complete installation, from fuel delivery to electronic controls. The system features self-tuning capabilities, allowing for efficient engine management, while also providing user-adjustable settings for precise control.

KEY FEATURES AND BENEFITS:

• Engineered to simplify LS engine upgrades with an all-inclusive design.
• Multi-port fuel injection system ensures optimal fuel delivery.
• 102mm throttle body and 80 lb./hr. injectors included for high performance.
• ECM and wiring harness facilitate a straightforward installation.
• 4.5-inch touch screen display allows for easy monitoring and adjustments.
• Self-tuning functionality adapts to engine conditions.
• User-adjustable settings provide fine-tuning capabilities.
• Optional transmission control for customized shift point and firmness adjustments.
• In-tank fuel pump module and high-volume fuel rails ensure consistent fuel supply.
• Included sensors provide accurate engine data for optimal performance.

SPECIFICATIONS:

• Fuel Injection Style: Multi-port
• Maximum Horsepower: 1,000 HP
• Throttle Body Size: 102mm
• Injector Size: 80 lb./hr.
• Display: 4.5-inch touch screen
• Fuel Pump: In-tank module
• Intake: Short LS3 port
• Transmission Control: Optional for 4L60/65/80/85 GM transmissions

HOW TO USE:

• Preparation: Disconnect the vehicle’s battery and prepare the engine bay for installation.
• Intake Installation: Install the FiTech LS3 port intake manifold, ensuring proper sealing.
• Fuel System Installation: Mount the in-tank fuel pump module and connect the fuel lines, ensuring proper pressure.
• Injector and Fuel Rail Installation: Install the 80 lb./hr. injectors and high-volume fuel rails.
• Throttle Body Installation: Attach the 102mm throttle body to the intake manifold.
• Sensor Installation: Install the MAP, IAT, TPS, and oxygen sensors.
• Wiring Harness Connection: Connect the wiring harness to the ECM and all engine sensors.
• Coil Pack Installation: Install the included LS3 style coil packs.
• ECM Setup: Mount the ECM and connect the 4.5-inch touch screen display.
• Initial Setup: Follow the on-screen prompts to configure the system for the engine.
• Testing and Tuning: Start the engine and allow the self-tuning feature to calibrate. Make user adjustments as needed.

BENEFITS OF USING THE FITECH LS 1000 HP EFI LS3 INTAKE MASTER KIT W/ TRANS CONTROL (78635):

• Enhances engine performance through precise fuel delivery and advanced electronic control.
• Simplifies LS engine swaps with its comprehensive kit and self-tuning capabilities.
• User-adjustable settings allow for fine-tuning, ensuring optimal performance in various conditions.
• Transmission control option provides customized shift point and firmness adjustments.
• High-quality components and robust design ensure reliable performance and longevity.

FEATURES:

• Fabricated 3mm thick aluminum sheet metal intake.
• Cast, cable activated billet aluminum 102mm throttle body.
• Handheld controller with color touch screen and cable.
• Windshield mount for touch screen controller.
• LS ECU with sequential fuel and spark control.
• High volume billet fuel rails.
• Sequential fuel and spark control with individual cylinder trim.
• Connects to 24x and 58x cam sensors.
• Knock sensor control connects to factory sensors.
• 3-Bar MAP sensor for boosted applications up to 30 psi.
• Tach output driver works with most tachometers.
• Two programmable electric fan outputs.
• Supplied with WBO2 sensors.
• Custom wiring harness for direct plug-in installation.
