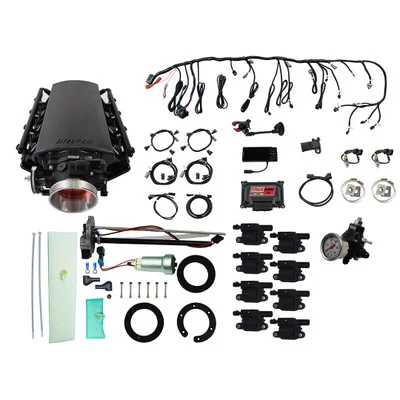

FiTech LS 1000 HP EFI In-Tank Pump LS3 Intake Master Kit (79634)

Description

The FiTech LS 1000 HP EFI In-Tank Pump LS3 Intake Master Kit (79634) represents a comprehensive upgrade for LS engine enthusiasts seeking improved performance and efficiency. This system replaces traditional carburetors with modern electronic fuel injection, offering precise fuel and spark control. Designed for high-horsepower applications, it supports up to 1,000 HP, making it suitable for performance builds and engine swaps.

KEY FEATURES AND BENEFITS:

• Complete EFI Solution: Includes an LS3 port intake manifold, a 102mm throttle body, and 80 lb/hr fuel injectors.
• Self-Learning Technology: Automatically tunes the system for optimal air/fuel ratios.
• Sequential Fuel and Spark Control: Offers individual cylinder trim for enhanced engine performance.
• Boost Capability: A 3-Bar MAP sensor supports boosted applications up to 30 psi.
• User-Friendly Controller: Handheld controller with a color touchscreen for easy adjustments and monitoring.
• Flexible Fuel System Options: In-tank fuel pump modules and fuel pressure regulators tailored for various setups.

SPECIFICATIONS:

• Fuel Injection Style: Multi-port
• Maximum Horsepower: 1,000 HP
• Throttle Body: 102mm, cast aluminum
• Injectors: 80 lb/hr
• Intake Manifold: Aluminum, LS3 port
• ECU: Included
• Self-Tuning: Yes
• Fuel System: In-tank pump options, regulator included
• Transmission Control: Optional for GM 4L60/65/80/85
• MAP Sensor: 3-Bar
• Display: 4.5-inch color touchscreen

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and intake manifold.
• Installation: Install the FiTech LS3 port intake manifold and 102mm throttle body.
• Fuel System: Install the chosen in-tank fuel pump module and connect the fuel lines to the fuel rails and regulator.
• Wiring: Connect the FiTech wiring harness to the engine sensors (MAP, IAT, TPS, crank, cam, knock).
• Injectors and Coils: Install the 80 lb/hr injectors and, if included, the Go-Spark LS coil packs.
• ECU and Sensors: Mount the ECU and connect the oxygen sensor and other necessary sensors.
• Handheld Controller: Connect the handheld controller and mount it in a convenient location.
• Initial Setup: Follow the on-screen instructions on the handheld controller to input engine parameters.
• Self-Learning: Start the engine and allow the system to self-learn and adjust the air/fuel ratios.
• Tuning: Fine-tune the system using the handheld controller as needed.

BENEFITS OF USING THE FITEC LS 1000 HP EFI IN-TANK PUMP LS3 INTAKE MASTER KIT (79634):

• Improved Engine Performance: Enhances horsepower and overall efficiency.
• Enhanced Fuel Efficiency: Optimizes fuel delivery for better mileage.
• Precise Control: Offers accurate fuel and spark adjustments for optimal performance.
• Simplified Tuning: Self-learning technology makes tuning straightforward.
• Compatibility with Boosted Applications: Suited for high-performance setups.
• Modern EFI Technology: Upgrades older LS engines for improved performance.
• Simplified Installation: Easier setup compared to other aftermarket EFI systems.

FEATURES:

• Durable Intake Manifold: Fabricated 3mm thick aluminum sheet metal and TIG welded for strength.
• High-Performance Throttle Body: Cast, cable-activated billet aluminum 102mm throttle body.
• Handheld Controller: Features a color touch screen and cable with a windshield mount for easy access.
• LS ECU: Connects to 24x and 58x cam sensors for accurate data collection.
• High Volume Injectors: 80 lb/hr injectors with high volume billet fuel rails for reliable fuel supply.
• Sequential Fuel and Spark Control: Provides precise control over fuel delivery and ignition timing.
• Knock Sensor Control: Connects to factory sensors for enhanced engine protection.
• Tach Output Driver: Works with most tachometers for accurate RPM readings.
• Programmable Electric Fan Outputs: Two outputs for managing electric fans efficiently.
• Custom Wiring Harness: Designed for a direct plug-in installation, simplifying setup.
• WBO2 Sensors Included: Supplied for accurate air-fuel ratio monitoring.
