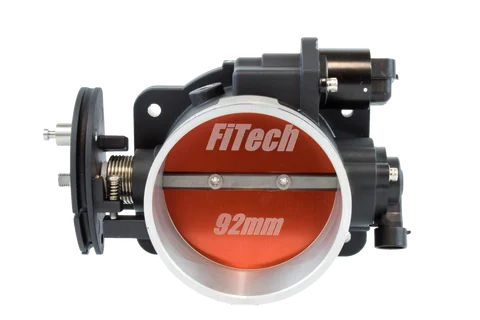

FiTech Loaded LS 92MM Throttle Body (70061)

Description

The FiTech Loaded LS 92MM Throttle Body (70061) is a 92mm throttle body engineered for LS series engines, providing a direct replacement solution to improve airflow and enhance engine performance. Designed with a focus on ease of installation and compatibility, this throttle body is a practical upgrade for those seeking to optimize their LS engine’s performance.

KEY FEATURES AND BENEFITS:

• Maximized Airflow: Features a 92mm single blade design for optimal airflow into the engine.
• Cable-Driven Design: Ensures responsive throttle actuation.
• Lightweight Aluminum Housing: Provides strength while reducing overall weight.
• Integrated Sensors: Includes an Idle Air Control (IAC) motor and a Throttle Position Sensor (TPS) for proper engine idle and throttle response.
• Direct Replacement: Designed for LS engines, requiring minimal additional modifications for installation.
• Uses Stock Components: Compatible with factory TPS and MAP sensors, making it easy to install.
• Included Hardware: Comes with necessary installation hardware (gasket not included).

SPECIFICATIONS:

• Type: Throttle Body
• Diameter: 92mm
• Drive Type: Cable
• Material: Aluminum
• Compatibility: LS Series Engines
• Included Sensors: IAC, TPS
• Weight: Approximately 6 lbs
• Dimensions: Roughly 7 x 5 x 9 inches
• Mounting Style: 4-bolt LS pattern

HOW TO USE:

• Disconnect Battery: Begin by disconnecting the negative terminal of your vehicle’s battery.
• Remove Old Throttle Body: Carefully take off the existing throttle body from the LS engine’s intake manifold.
• Transfer Sensors: Move the stock TPS and MAP sensors from the old throttle body to the FiTech 70061.
• Position Throttle Body: Align the FiTech 70061 onto the intake manifold, ensuring bolt hole alignment.
• Secure Throttle Body: Use the provided hardware to secure the throttle body. Note: A gasket is not included and must be sourced separately.
• Reconnect Cable Drive: Attach the cable drive to the throttle body linkage.
• Connect Electrical Connectors: Reconnect the IAC and TPS sensor connectors.
• Reconnect Battery: Reattach the vehicle’s battery.
• Start Engine: Start the engine and check for proper idle and throttle response.

BENEFITS OF USING THE FITECH LOADED LS 92MM THROTTLE BODY (70061):

• Improved airflow leads to enhanced throttle response and increased horsepower.
• Direct replacement design simplifies installation, minimizing downtime and complexity.
• Essential sensors included for proper engine operation.
• Durable aluminum construction offers increased longevity and reduced weight.

FEATURES:

• Single Blade Design: 92mm airflow design for maximum efficiency.
• Cable Drive Actuation: Direct and responsive throttle control.
• Aluminum Housing: Light yet strong, enhancing durability.
• LS Style Mounting: 4 bolt intake manifold compatibility.
• Utilizes Factory Sensors: Compatible with existing TPS and MAP sensors.
• Included Hardware: Comes with necessary installation hardware for easier setup.
• Designed for LS Applications: Straightforward installation for LS series engines.
