FiTech Go Street 400 HP Cast EFI w/ 255 LPH In-Tank Master Kit (36103)

Description

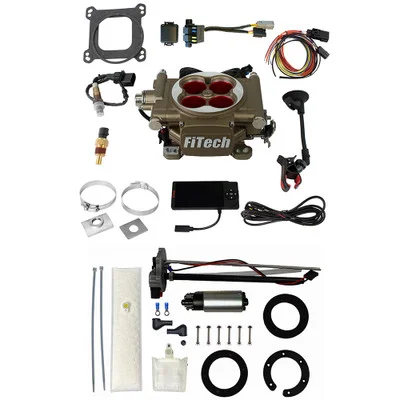

The FiTech Go Street 400 HP Cast EFI w/ 255 LPH In-Tank Master Kit (36103) simplifies the transition from carburetor to electronic fuel injection. Designed for street and mild performance engines, this system offers improved drivability and fuel efficiency. It includes a self-learning ECU, in-tank fuel pump, and all necessary sensors for a complete installation.

KEY FEATURES AND BENEFITS:

• Rated for up to 400 horsepower, suitable for a wide range of engines.
• Self-learning technology that automatically adjusts fuel delivery for optimal performance.
• In-tank 255 LPH fuel pump module included for reliable fuel delivery.
• Speed density (MAP-N) metering for accurate fuel calculations.
• Timing control compatible, allowing for precise ignition adjustments.
• 4-barrel square bore throttle body mounting flange for direct carburetor replacement.
• Handheld touchscreen controller for easy tuning and monitoring.
• Improved cold starting and smoother idle compared to carburetors.

SPECIFICATIONS:

• Maximum Horsepower: 400 HP
• Injection Style: Throttle body
• Metering Style: Speed density (MAP-N)
• Airflow Rate: 850 CFM
• Injector Size: 62 lbs./hr.
• Fuel Pump: In-tank, 255 LPH
• Throttle Body Mounting Flange: 4-barrel square bore
• Venturi: 4 x 44mm
• ECU: Included
• Sensors: MAP, IAT, TPS, Oxygen

HOW TO USE:

• Remove Existing Carburetor: Disconnect fuel lines, linkage, and remove the old carburetor.
• Install FiTech Throttle Body: Mount the FiTech throttle body onto the intake manifold using the provided gasket.
• Install In-Tank Fuel Pump: Place the in-tank fuel pump assembly into the fuel tank.
• Connect Wiring Harness: Connect the wiring harness to the throttle body, sensors, and ECU.
• Install Sensors: Mount the oxygen sensor, coolant sensor, and other necessary sensors.
• Connect Fuel Lines: Connect the fuel supply and return lines to the throttle body and fuel pump.
• Connect Handheld Controller: Plug in the handheld touchscreen controller.
• Initial Setup: Follow the on-screen prompts on the handheld controller for initial setup.
• Start and Self-Learn: Start the engine and allow the self-learning system to calibrate.
• Fine-Tune (Optional): Use the handheld controller to fine-tune settings as needed.

BENEFITS OF USING THE FITECH GO STREET 400 HP CAST EFI W/ 255 LPH IN-TANK MASTER KIT (36103):

• Enhanced engine performance and responsiveness.
• Improved fuel economy compared to traditional carburetors.
• Easier cold starts and smoother idle.
• Reduced emissions.
• Simplified tuning with self-learning technology.
• Modernized engine control for classic vehicles.
• Reliable fuel delivery.

FEATURES:

• Cast aluminum throttle body construction.
• Integrated fuel pressure regulator.
• Wideband oxygen sensor included.
• Complete wiring harness with labeled connectors.
• Handheld touchscreen display for real-time monitoring.
• Compatible with various fuel types.
• Internal IAC motor.
• All required sensors are included.
