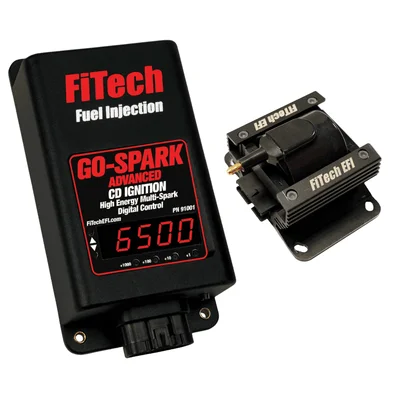

FiTech Go Spark Advanced CDI + Go Spark Coil (91101)

Description

The FiTech Go Spark Advanced CDI + Go Spark Coil (91101) is an ignition system designed to boost engine performance through enhanced spark delivery. This system allows users to adjust spark energy output based on driving needs, offering flexibility between street and high-performance applications. It provides precise control over ignition timing and includes features to protect the engine during demanding conditions.

KEY FEATURES AND BENEFITS:

• Adjustable Spark Energy: Switch between 275mJ for street driving and 585mJ for track use.
• Customizable Rev Limiters: Includes burnout, launch, and maximum engine over-rev protection to prevent engine damage.
• Adjustable Start Retard: Reduces starter motor load for quick and easy engine starts.
• Nitrous/Step Retard Input: Enables safe integration with nitrous oxide systems.
• Digital Timing Control: Provides precise ignition timing adjustments.
• LED Display: Real-time monitoring of RPM and battery voltage.
• High-Energy Coil: Delivers a powerful spark to enhance CDI performance.

SPECIFICATIONS:

• Spark Energy: 275mJ/585mJ (or 550mJ/200mJ, verify with manufacturer)
• Primary Voltage: 450/500 volts
• Spark Duration: 20 degrees
• Multi-Spark to Battery Supply: Up to 2,500 RPM (6-18 volts)
• Max RPM: 10,000 RPM
• Weight: 4 lbs
• Dimensions: 5 × 7 × 13 inches
• Compatibility: Designed for pre-pollution controlled vehicles and off-road/race applications. May require modifications for certain vehicle applications.

HOW TO USE:

1. Installation: Mount the CDI unit and coil in a secure location, following the manufacturer’s wiring diagram.
2. Wiring: Connect the power and ground wires to the appropriate terminals. Connect the coil to the CDI unit, and the CDI unit to the distributor or crank trigger.
3. Initial Setup: Turn on the ignition and use the LED display and buttons to set the desired spark energy, rev limits, and start retard settings.
4. Timing Adjustments: Use the digital timing control to fine-tune ignition timing based on engine requirements.
5. Nitrous Setup (If Applicable): Connect the nitrous/step retard input to the nitrous system, and configure the retard settings as needed.
6. Testing: Start the engine and verify the RPM and battery voltage readings on the LED display. Make any necessary adjustments.

BENEFITS OF USING THE FITECH GO SPARK ADVANCED CDI + GO SPARK COIL (91101):

• Improved engine performance through enhanced spark delivery.
• Protection against engine damage with customizable rev limiters.
• Easier engine starts with adjustable start retard.
• Safe use with nitrous oxide systems.
• Precise ignition timing control for optimal performance.
• Real-time monitoring of engine RPM and battery voltage.

FEATURES:

• Switchable spark energy levels.
• Individual rev limiters for specific engine events.
• Adjustable timing delay during start-up.
• Input connections for nitrous oxide systems.
• Digital timing manipulation.
• Real-time digital display of running engine data.
• High-output coil for powerful spark.
