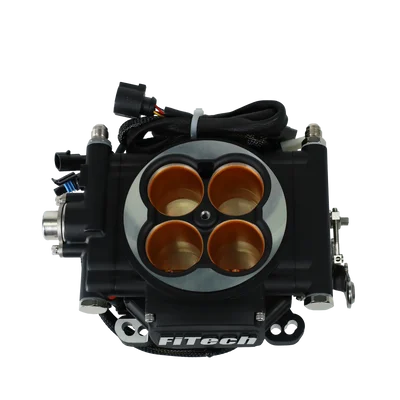

FiTech Go EFI 8 Power Adder Matte Black Finish 1200HP System (30012)

Description

The FiTech Go EFI 8 Power Adder Matte Black Finish 1200HP System (30012) is engineered for high-performance engines, providing a modern electronic fuel injection solution to replace traditional 4-barrel carburetors. It’s designed to handle engines producing 250 to 1200 horsepower and is particularly suited for applications with power adders like turbochargers, superchargers, and nitrous oxide injection. This system offers both self-tuning capabilities for ease of use and user-tunable options for precise control.

KEY FEATURES AND BENEFITS:

• High-Flow Injectors: Features 8 high-flow injectors capable of fueling up to 1200 HP, ideal for high-performance builds.
• Boost Pressure Support: Handles boost pressures up to 25 psi and is compatible with nitrous oxide systems.
• Built-in Fuel Pressure Regulator: Ensures accurate fuel delivery and engine management.
• Electronic Control Module (ECM): Provides precise control over fuel and ignition settings.
• Hand-Held Controller: Includes a touch-screen for easy setup, tuning, and data logging.
• 2.5 BAR Internal MAP Sensor: Ensures accurate readings for boosted applications.
• Performance Upgrade: Significantly enhances performance and drivability over traditional carburetor setups.

SPECIFICATIONS:

• Maximum horsepower: 1200 HP
• Injection style: Throttle body
• Timing control: Yes
• Power adder compatible: Yes (Boost/Nitrous)
• ECU included: Yes
• Throttle body flange: 4-barrel square bore
• Injector size: 80 lb/hr
• MAP sensor: 2.5 BAR
• Airflow rate: 850 CFM
• Fuel compatibility: Gasoline, Alcohol, Methanol, Flex

HOW TO USE:

• Installation: Remove the existing 4-barrel carburetor and install the FiTech 30012 throttle body onto the 4-barrel intake manifold.
• Sensor Installation: Install the provided oxygen sensor, coolant temperature sensor (CTS), and other necessary sensors.
• Wiring: Connect the wiring harness to the vehicle’s electrical system and the ECM.
• Fuel System: Connect the fuel lines to the built-in fuel pressure regulator (external fuel pump required, not included).
• Initial Setup: Use the hand-held controller to input basic engine parameters.
• Self-Tuning: Start the engine and allow the ECM to self-tune the fuel and ignition settings.
• User Tuning (Optional): Use the hand-held controller or pro-tuning software to fine-tune settings as needed.
• Data Logging: Utilize the pro-tuning software to monitor and analyze engine performance data.

BENEFITS OF USING THE FITECH GO EFI 8 POWER ADDER MATTE BLACK FINISH 1200HP SYSTEM (30012):

• Improved fuel efficiency and performance compared to traditional carburetors.
• Enhanced engine drivability and throttle response.
• Precise control over fuel and ignition timing.
• Ability to handle high horsepower and power-adder applications.
• Easy setup and tuning with self-tuning and user-tunable options.
• Data logging for performance analysis.

FEATURES:

• Annular Discharge: Equipped with 20 jet streams for enhanced fuel atomization.
• Fan Control Switches: Two switches for efficient cooling management.
• Fuel Type Compatibility: Supports gasoline, alcohol, methanol, and flex fuel.
• Returnless Fuel Command Center: Allows for engine-mounted fuel management.
• Reliable Sensors: Utilizes GM-type sensors and Bosch 4.2 wideband oxygen sensors.
• Nitrous and Boost Control: Features timing retard strategies and target air-fuel options.
• Air Conditioning Input: Idle speed input for smooth operation during A/C use.
• Safety Features: Comprehensive accessories for nitrous tuning control.
• CDI Box Compatibility: Works with CDI boxes for enhanced timing control.
• Multiple Fuel Inlet Options: Three connection choices for installation flexibility.
