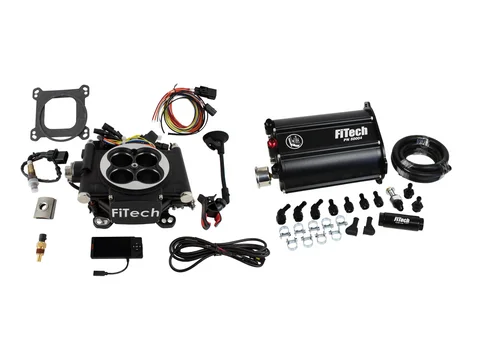

FiTech Go EFI 4 System 600HP Black Master Kit w/Force Fuel (35202)

Description

The FiTech Go EFI 4 System 600HP Black Master Kit w/Force Fuel (35202) is designed to replace traditional carburetors with a modern, efficient electronic fuel injection setup. This kit is ideal for naturally aspirated engines producing between 250 and 600 horsepower, providing improved fuel delivery and performance.

KEY FEATURES AND BENEFITS:

• Self-Tuning ECU: Automatically adjusts fuel delivery for optimal performance, eliminating the need for manual tuning.
• Force Fuel System: Ensures consistent high-pressure fuel delivery with an internal 340 LPH pump, connecting to your existing fuel pump.
• High Airflow Capacity: 850 CFM 4-barrel throttle body mounts to standard 4-barrel intake manifolds.
• Sufficient Fuel Flow: 80 lbs./hr injectors provide adequate fuel flow for high-performance applications.

SPECIFICATIONS:

• Maximum horsepower: 600 HP
• Injection style: Throttle body
• Timing control: Yes
• Power adder compatible: No
• ECU included: Yes
• Fuel pump included: Yes (Force Fuel system)
• Transmission controller included: No
• Metering style: Speed density (MAP-N)
• Throttle body mounting flange: 4-barrel square bore
• Airflow rate: 850 CFM
• Injector size: 80 lbs./hr
• Fuel pump flow rating: 340 LPH
• User interface: 4.5 in. display

HOW TO USE:

• Preparation: Disconnect the negative battery terminal. Remove the existing carburetor and intake manifold (if needed).
• Installation: Mount the FiTech throttle body onto the intake manifold. Install the Force Fuel system, connecting it to your existing fuel pump and fuel lines.
• Wiring: Connect the wiring harness to the vehicle’s electrical system, following the provided instructions. Install the oxygen sensor.
• Sensor Installation: Install the MAP, IAT, and TPS sensors.
• Initial Setup: Connect the 4.5-inch display and follow the on-screen prompts for initial setup.
• Fuel System Priming: Prime the fuel system by cycling the ignition key.
• Engine Start: Start the engine and allow the self-tuning ECU to adjust fuel delivery.
• Fine-Tuning (Optional): Use the display to adjust air/fuel ratios and ignition timing as needed.

BENEFITS OF USING THE FITECH GO EFI 4 SYSTEM 600HP BLACK MASTER KIT W/FORCE FUEL (35202):

• Improved fuel efficiency compared to carburetors.
• Enhanced engine performance and responsiveness.
• Easier starting and smoother idle.
• Reduced maintenance and elimination of carburetor-related issues.
• Reliable fuel delivery through the Force Fuel system.
• Simplified installation with integrated ECU.

FEATURES:

• 4-Barrel Design: Features a 43mm venturi diameter.
• Durable Construction: Cast aluminum throttle body with a satin black finish.
• Fuel Compatibility: Works with alcohol, gasoline, methanol, and flex fuels.
• Included Components: Calibration module and wiring harness.
• External Fuel Pump Style: Utilizes the included Force Fuel system.
• Included IAC Motor: For improved idle control.
• Universal Fitment: Designed for a wide range of applications.
